CNC Rotary Table
Created with Pixso. CNC Rotary Table NCT-250

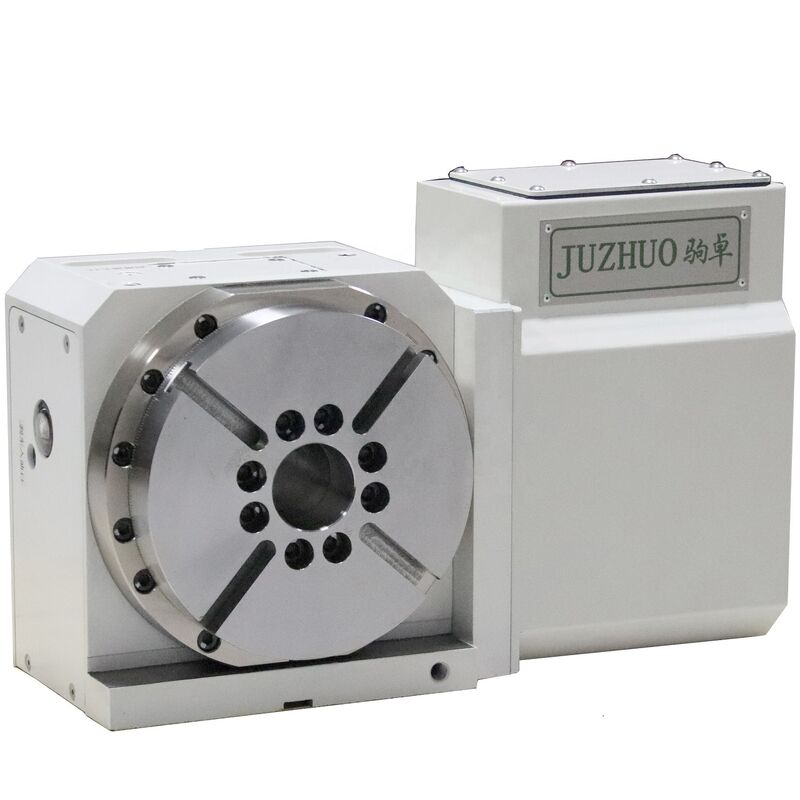

CNC Rotary Table NCT-250

Brand Name: Juzhuo
MOQ: 1
Detail Information
Place of Origin:
Guangdong, China
Weight (kg):
100
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty:
3 Years
Rotary Table Diameter:
250
Hole Diameter(mm):
90
Center Bore Diameter(mm):
90H7
Through-Hole Diameter(mm):
50
Allowable Workpiece Diameter(mm):
420
Usage:
Milling Or Drilling Machine
Material:
Steel
Precision:
15~20Second
Repeat Positioning Accuracy:
4second
Brand:
JUZHUO
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Marketing Type:
Hot Product 2020
Highlight:

NCT250 CNC Rotary Table

,

Industrial Grade CNC Rotary Table

,

Industrial Precision CNC Rotary Table

Product Description
Factory Price Universal Rotary Table/Tilting Rotary Table NCT-250
Product Overview

The Universal Rotary Table/Tilting Rotary Table NCT-250 is a high-precision, heavy-duty rotary table designed for demanding industrial applications requiring exceptional accuracy and rigidity.

Key Features
  • High Precision Roller Cam Unit
  • Heavy Duty Oil Hydraulic Lock System
  • YRT Radial Bearings for Heavy Cutting Resistance
  • Large Aperture Design
  • High Rigidity Construction
  • CNC Indexable Rotary Table
Technical Specifications
NCT-250 Rotary Table Technical Specifications Diagram NCT-250 Rotary Table Construction Detail NCT-250 Rotary Table Internal Mechanism NCT-250 Rotary Table Bearing System NCT-250 Rotary Table Hydraulic Lock NCT-250 Rotary Table Precision Components NCT-250 Rotary Table Manufacturing Process NCT-250 Rotary Table Quality Control NCT-250 Rotary Table Assembly NCT-250 Rotary Table Final Product NCT-250 Rotary Table Application Example NCT-250 Rotary Table Installation Guide NCT-250 Rotary Table Maintenance Overview
