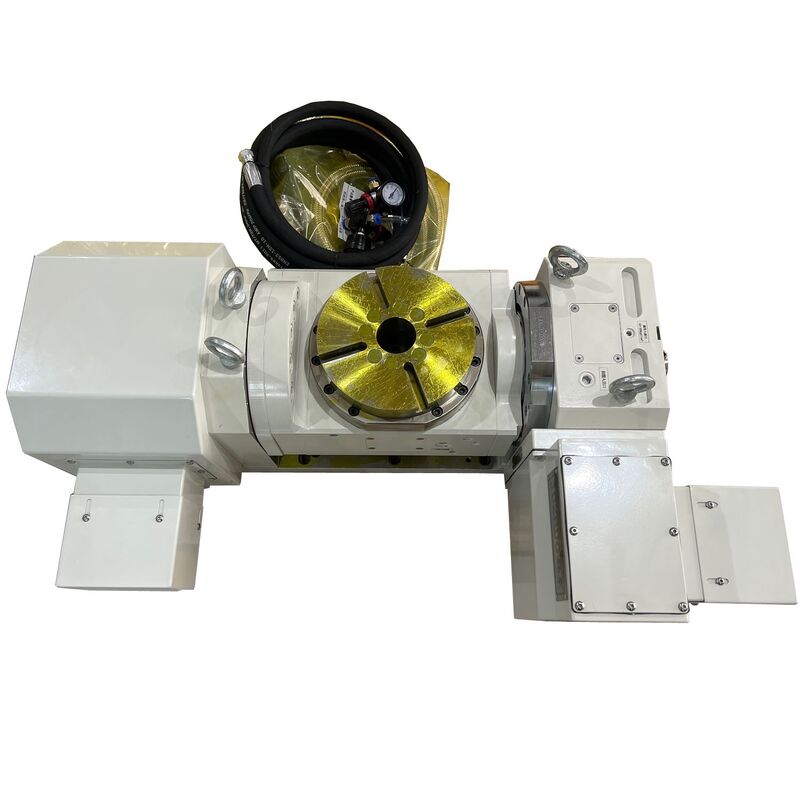

5 Axis CNC Rotary Table TDNC-200

Brand Name:	Juzhuo
MOQ:	1
Price:	$10,800

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Weight (kg):

260

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty:

3 Years

Brand:

JUZHUO

Model:

TDNC-200

Diameter Of Turntable Disk Surface (mm):

200

Center Height (mm):

135

Diameter Of Central Hole (mm):

50H7

Workbench T Groove Width (mm):

12H7

Total Reduction Ratio:

I:60

Division Precision (sec):

+/-20

Repeated Positioning Accuracy (sec):

Tilt Angle (Deg):

-120~+120

Condition:

New

Showroom Location:

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alger

Marketing Type:

Hot Product 2019

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C

Highlight:

5 Axis TDNC200 CNC Rotary Table

Precision Aerospace Rotary Table

Aerospace Components Rotary Table

Product Description

CNC 5th Axis Rotary Table for Milling TDNC-200

CNC 5th Axis rotary table for milling TDNC-200

Functional Features

High strength and high precision tailstock
Optimized structure with tailstock connection to oil pressure pipeline for disk surface clamping
Double-arc CAM transmission structure for high precision, wear resistance, and zero gap operation
Self-developed three piece-type gear disc brake structure with surrounded-type brake design for high precision segmentation and positioning
Radial bearing set providing higher load capacity and precision than crossed roller bearings

Technical Parameters
