Manual Pneumatic Indexing Table , Customized Pneumatic Rotary Table JZ-800

Brand Name:	JuZhuo
MOQ:	1
Price:	$3,980

Detail Information

Product Description

Detail Information

Place of Origin:

China

Products Name:

Pneumatic Indexing Table

Weight (kg):

200

Warranty:

1.5 Year

Machine Type:

Punching Machine, Milling Machine, Lathe Machine, Grinding Machine, Drilling Machine, Boring Machine, Turning Machine, Shaping Machine, Planning Machine

After Warranty Service:

Video Technical Support

Usage:

Processed Products

Size:

Customized Size

Color:

Custom Color

MOQ:

Package:

Wooden Box

Highlight:

Manual Pneumatic Indexing Table

Customized Pneumatic Indexing Table

Pneumatic Rotary Table JZ-800

Product Description

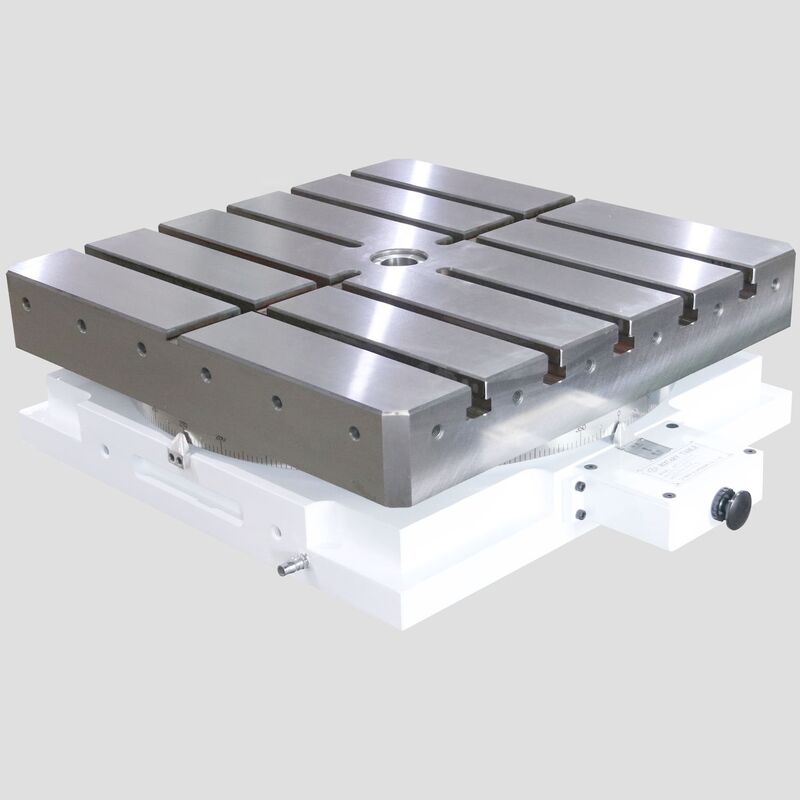

Manual Pneumatic Index Rotary Table JZ-800

Product Overview

The Manual Pneumatic Rotary Table JZ-800 is a precision indexing rotary table designed for high-precision machining applications across various industrial processes.

Applications

Primarily suitable for various bore hole, milling, grinding machines and other high-precision processing equipment.

Main Features

Adopt two-pieces of helical gear coupling for positioning, with dividing precision up to ±2 seconds
Precision not affected by increased usage hours
Strong air pressure locking system resistant to heavy cutting
Fast rotation and easy operation
360-degree rotation capability
Can be connected with host machine for milling, cutting, turning, and boring operations
Multiple processes (milling, boring, drilling, countersink, reaming, tapering) possible with single fixture

Technical Parameters

Specifications/Model	JZ-450	JZ-600	JZ-800	JZ-1000
Table size (Length×Width) mm	450×450	600×600	800×800	1000×1000
Total Thickness/height (mm)	170	200	280	300
Diameter of center hole (mm)	Ø30	Ø40	Ø60	Ø60
Milling T-slots (mm)	18	20	22	22
The direction of rotates	Clockwise and Counter-clockwise rotating
The tightness of Table	5	5	8	8
Drive	Lock/loosen - Air pressure supply 5~8 kg/square Centimeter
Rotation	Manual
Minimum Division (Degree)	1 or 5 degree
Division accuracy/precision	±2 seconds
Vertical Load (Theory)	2400	3400	4500	6000
Allowable load (practical)	1000	2000	3000	4000
Locked-in stress	2200	3200	5400	5400
Weight	220	420	900	1200
