| Brand Name: | JuZhuo |
| MOQ: | 1 |
| Price: | 639,068円 |

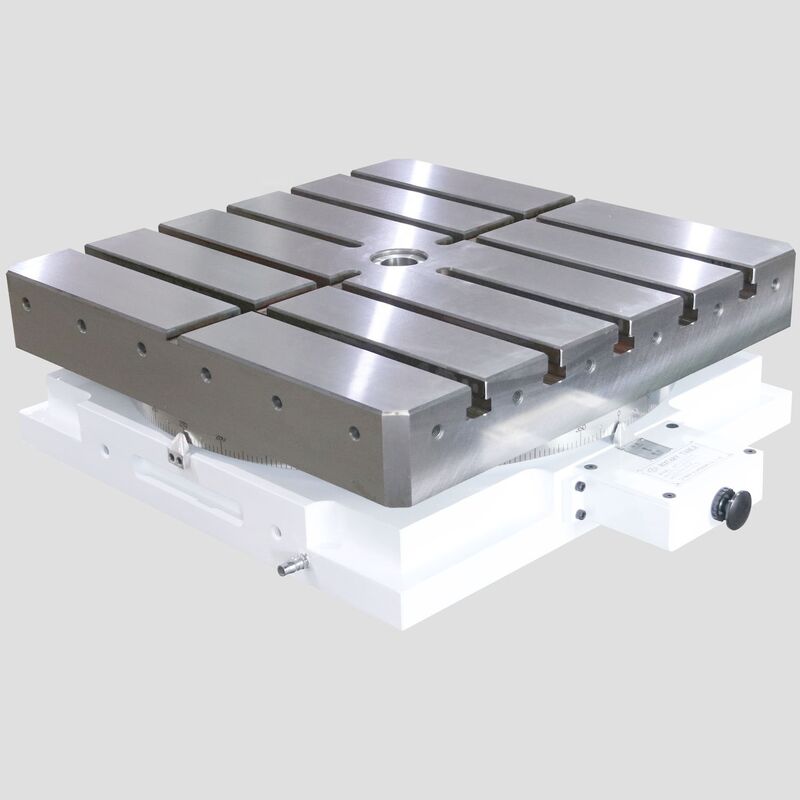

Precision indexing rotary table JZ-800 is mainly suitable for various bore hole, milling, grinding machines and other high-precision processing applications.
| Specifications/Model | JZ-450 | JZ-600 | JZ-800 | JZ-1000 |
|---|---|---|---|---|
| Table size (Length×Width) mm | 450×450 | 600×600 | 800×800 | 1000×1000 |
| Total Thickness/height (mm) | 170 | 200 | 280 | 300 |
| Diameter of center hole (mm) | Ø30 | Ø40 | Ø60 | Ø60 |
| Milling T-slots (mm) | 18 | 20 | 22 | 22 |
| The direction of rotates | Clockwise and Counter-clockwise rotating | |||
| The tightness of Table | 5 | 5 | 8 | 8 |
| Drive | Lock/loosen - Air pressure supply 5~8 kg/square Centimeter | |||
| Rotation | Manual | |||
| Minimum Division (Degree) | 1 or 5 degree | |||
| Division accuracy/precision | ±2 seconds | |||
| Vertical Load (Theory) | 2400 | 3400 | 4500 | 6000 |
| Allowable load (practical) | 1000 | 2000 | 3000 | 4000 |
| Locked-in stress | 2200 | 3200 | 5400 | 5400 |
| Weight | 220 | 420 | 900 | 1200 |
