Index Rotary Table JZ-1200 Manufacturer

Brand Name:	JuZhuo
MOQ:	5
Price:	$9,800

Detail Information

Product Description

Detail Information

Place of Origin:

Taiwan, China

Weight (kg):

2500

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty:

3 Years

Machine Type:

Punching Machine, Milling Machine, Lathe Machine, Grinding Machine, Drilling Machine, Boring Machine, Turning Machine, Shaping Machine, Planning Machine

Color:

White And Blue(customized)

Raw Material:

Stainless Steel

Application:

Workpiece

Products Name:

Rotary Table

Advantage:

High Quantity Made

Brand:

Juzhuo

Feature:

Antirust Rotary Tables

MOQ:

1set

Function:

Work Piece Precisely

Highlight:

customized cnc rotary table

customized index rotary table

stainless steel cnc rotary table

Product Description

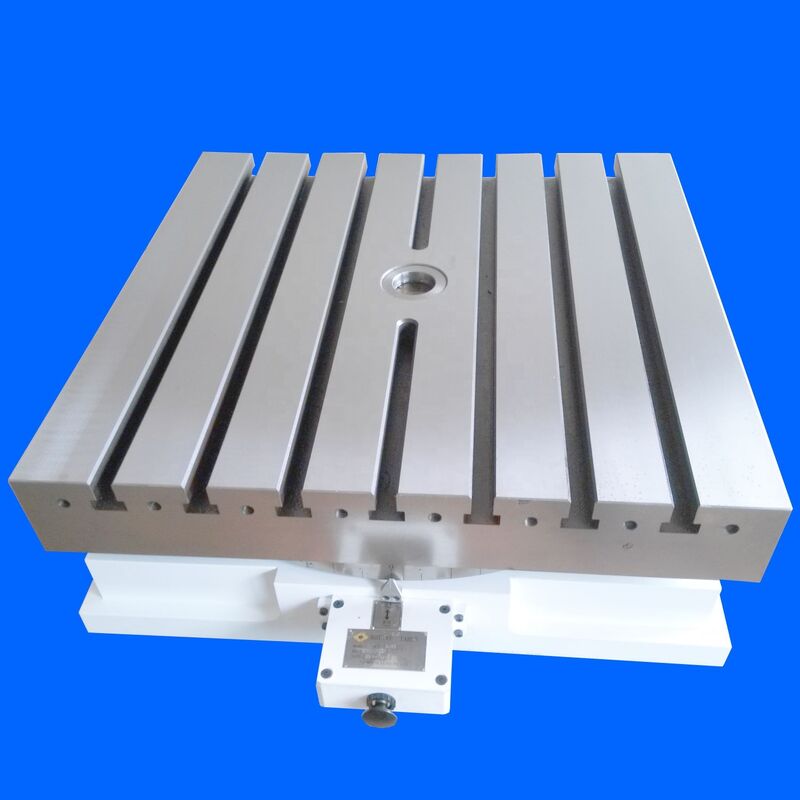

Index Rotary Table for Horizontal Boring and Turning Mill JZ-1200

Product Overview

The Index Rotary Table JZ-1200 is designed for high-precision processing applications including boring, milling, and grinding operations on various machine tools.

Key Features

Precision bearings from Japanese NSK brand for superior performance
Two-piece helical gear coupling for positioning with ±2 seconds dividing accuracy
Core positioning gear originally produced in Taiwan
Strong air pressure locking system resistant to heavy cutting operations
Fast rotation with easy operation
360-degree rotation capability
Enables multiple processing operations (milling, cutting, turning, boring) with single fixture setup

Technical Specifications

Specifications/Model	JZ-450	JZ-600	JZ-800	JZ-1000	JZ-1200
Table size (Length×Width) mm	450×450	600×600	800×800	1000×1000	1200×1200
Total Thickness/height (mm)	170	200	280	300	340
Diameter of center hole (mm)	Ø30	Ø40	Ø60	Ø60	Ø80
Milling T-slots (mm)	18	20	22	22	22
Rotation Direction	Clockwise and Counter-clockwise rotating
Table Tightness	5	5	8	8	8
Drive System	Lock/loosen: Air pressure supply 5~8 kg/cm² Rotation: Manual
Minimum Division (Degree)	1 or 5 degree
Division Accuracy	±2 seconds
Vertical Load (Theory) kg	2400	3400	4500	6000	12000
Allowable Load (Practical) kg	1000	2000	3000	4000	10000
Locked-in Stress kg	2200	3200	5400	5400	5400
Weight kg	220	420	900	1200	2500
