4 Axis CNC Rotary Turntable For Machining Center Machine Tools Accessories

Brand Name:	Juzhuo
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Name:

Rotary Turntable

Weight (kg):

1500

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Machine Type:

Punching Machine, Milling Machine, Lathe Machine, Grinding Machine, Drilling Machine, Boring Machine, Turning Machine, Shaping Machine, Planning Machine

Rotary Table Diameter:

800mm

Center Height(mm):

465

Center Through Hole:

135(F230)H6

Locating Key Size (mm):

22mm

Total Thickness:

390mm

T-slot Size (mm):

8-18H12

Worm Gear Ratio:

1to120

Total Reduction Ratio:

1to 360

Dividing Accuracy:

Repeatability Accuracy:

Highlight:

4 Axis CNC Rotary Turntable

Machine Tools Rotary Turntable

Machining Center Rotary Turntable

Product Description

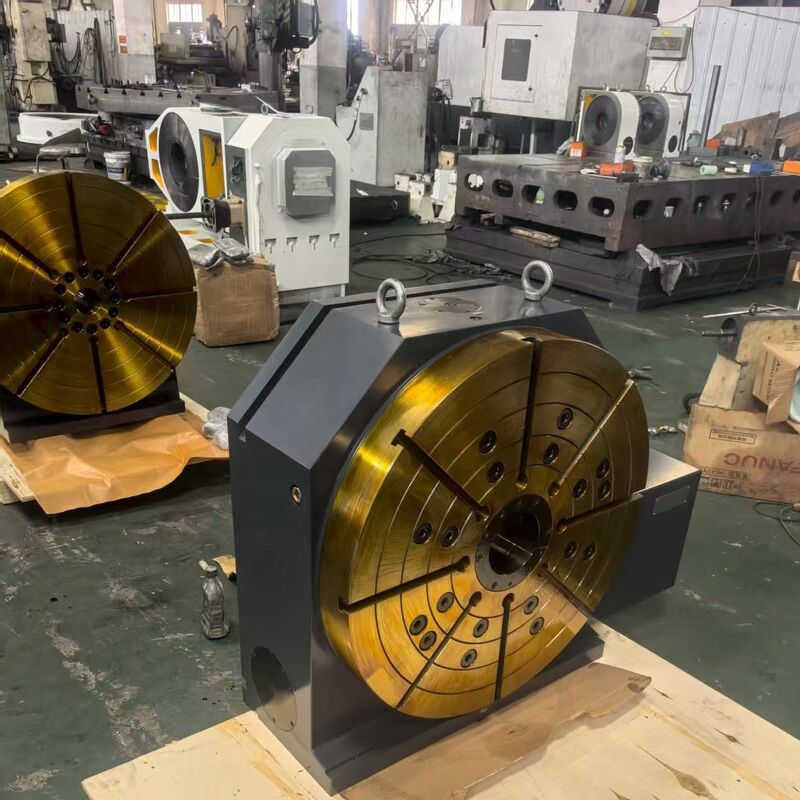

4-Axis Index Table 4 Axis CNC Rotary Turntable for Machining Center Machine Tools Accessories

Product Overview

The Model NC-800 4-Axis CNC Rotary Table features a worm gear and worm wheel structure, designed as a rotational device for machine tools. This precision component serves as a 4th/5th axis solution for machining centers, enhancing multi-axis capabilities.

Key Features

High Transmission Ratio: Single-threaded worm gear provides transmission ratios up to 100:1 or higher, ideal for applications requiring significant reduction ratios
Compact Structure: Space-efficient worm gear and worm wheel design saves more space compared to multi-stage gear transmission systems
Self-Locking Property: Small helix angle of the worm prevents reverse drive, ensuring enhanced operational safety and stability
