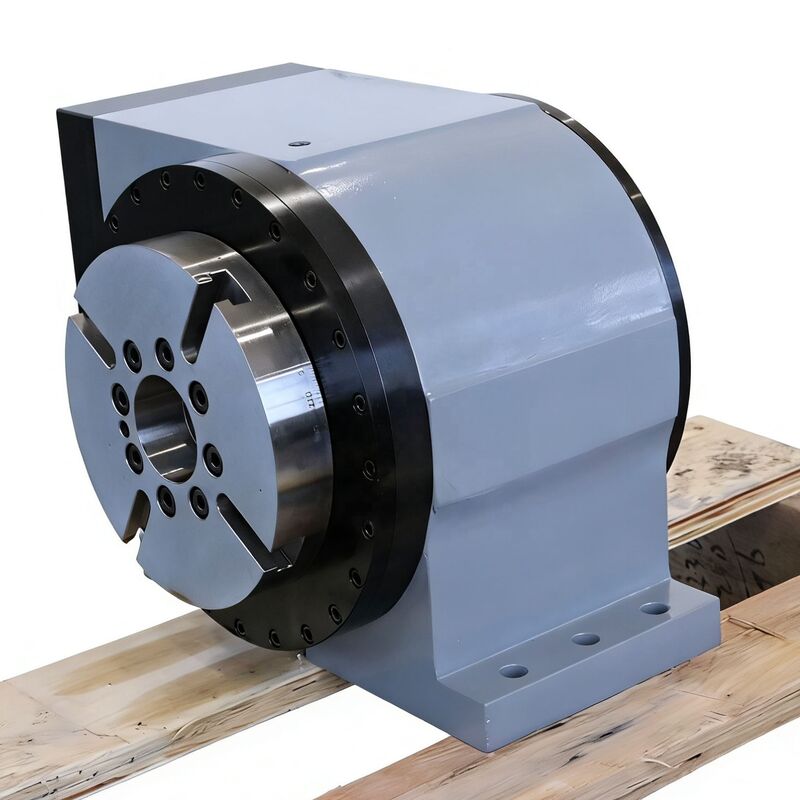

Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments

Brand Name:	Juzhuo
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Products Name:

4th Axis Rotary Table

Weight (kg):

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty:

3 Years

Machine Type:

CNC Rotary Table, Direct-drive 4axis Rotary Table

Table Loading Capacity:

50kg

Axis Orientation:

Horizontal

Table Diameter:

170

Model:

DAR-170

T-slot Size:

12H8

Center Height:

135mm

Brake Torque:

150N.M

IP Rating:

IP65

Highlight:

Direct Drive Indexing Rotary Table

Indexing Rotary Table 4th Axis

Medical Instruments 4th Axis Rotary Table

Product Description

Direct Drive Indexing Mechanism 4th Axis Rotary Table

High-performance direct-drive torque motor 4th axis rotary table designed for precision indexing applications. Features advanced direct-drive technology with exceptional acceleration, torque, and zero-backlash performance.

Key Features

Direct-drive motor with high acceleration, high torque, high precision, and zero backlash
Built-in pneumatic power brake system for secure positioning
Large-bore, high-rigidity bearings for superior stability
Ideal for high-speed indexing of blades, medical instruments, 3C product parts, and more

Technical Specifications (Model: DAR-170)

Item/Model	Unit	Specifications
Table Diameter	mm	170
Center Height	mm	135
T-slot Size	-	12H8
Table Load Capacity	kg	50
Axis Orientation	-	Horizontal
Hollow Bore Diameter	mm	40
Max. Rotary Table Speed	r/min	200
Motor Rated Torque	N*m	65
Motor Peak Torque	N*m	309
Brake Torque	N*m	150
IP Rating	-	IP65
Motor Cooling	-	Natural Cooling
Cable Outlet Type	-	Aviation Plug
Overall Weight	kg	48
