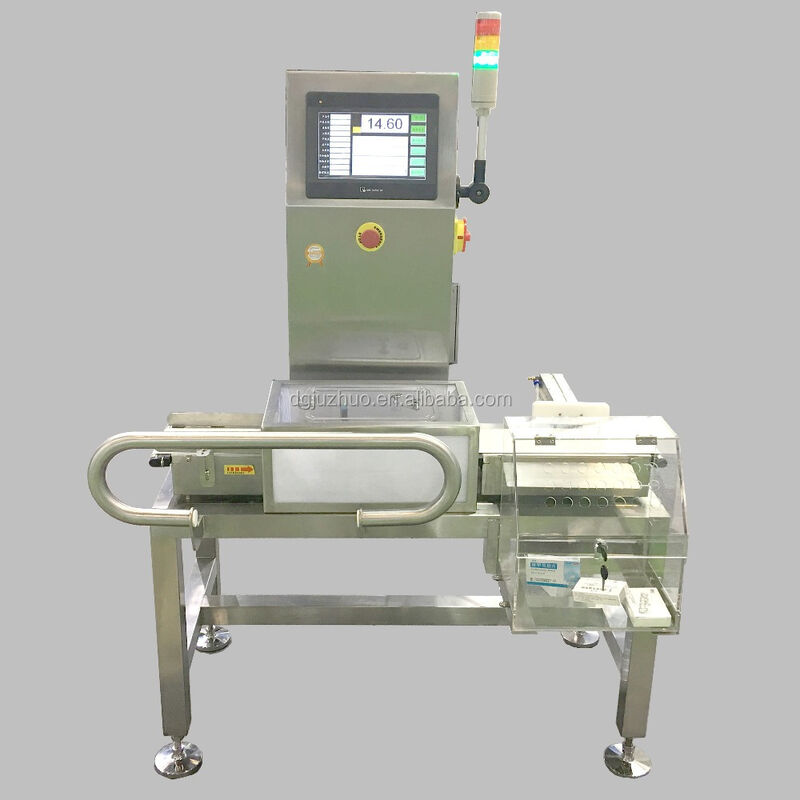

High precision stainless steel check weigher/online weigh checker JZ-W300g
Application
High precision stainless steel check weigher/online weigh checker JZ-W300g is used to check whether the single pack weight is conformed to the preset weight, and the overweight and underweight products can be removed by various reject devices automatically.qualify bags will be passed to next equipment
Features
² SIEMENS PLC and 10" color touch screen, Intelligent compact design construction;
Auto program setting adjust for more stability and easier to operate;
² Apply HBM load cell ensure high accuracy and stability (original from Germany);
² Solid SUS304 structure ensure stable performance and precise weighing;
² Reject arm, air blast or pneumatic pusher for selecting;
² Belt disassembling without tools, which is easier to clean;
² Install emergency switch at the size of machine, user friendly operation;
² Arm device show clients clearly for the production situation (optional);
² Can record up 10 kinds of different products parameter,
Specifications
Model | JZ-W300g |
Control System | 10’’ color touch screen |
Weighing range | 3-300 grams |
Conveyor Speed | 16~118m/minutes |
Maximum through-put capacity (products) | 330bags/minutes |
Accuracy | +0.3 grams |
Product Size | 60<L<180mm; 30<W<150 mm ;10<H<130mm |
Mini Scale | 0.1 grams |
Weigh Belt | 300L*160W mm |
Conveyor height | 750mm+/-50mm |
auto Reject system | Reject Arm/Air Blast/ Pneumatic Pusher/divided –flow style |
Grade of waterproofing | IP66 |
Power supply | 220V/50HZ or 60HZ Single Phase |
Machine material | 304 stainless steel |
Interface | Transmit the weight to Ink-jet printer(need customer offer the protocol) |
Packing Dimension | 1500L*400W*1510H mm |
Gross Weight | 150KG |
Optional part
1,the software for network date management
2,Front feeding FBC feedback control software
3,Printer
4,lamp
