Retooled Automatic Check Weigher Load Cell Weighing Machine System Equipment JZ-W1200g

Name: Retooled Automatic Check Weigher Load Cell Weighing Machine System Equipment JZ-W1200g
Brand: Dongguan Juzhuo Precision Machinery Co., Ltd.
SKU: JZ-W1200g
Availability: InStock

Model Number:	JZ-W1200g
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Display Type:

10" Color Touch Screen

Conveyor Speed:

13~96m/minutes

Waterproof:

IP66

Accuracy:

+/-0.5grams

Machine Material:

SUS 304

Conveyor Belt Size:

400mmL*220mm W

HBM Load Cell:

(original From Germany)

Power Supply:

220V

Highlight:

Retooled Automatic Check Weigher Machine

Load Cell Weighing System Equipment

Retooled Load Cell Checkweigher

Product Description

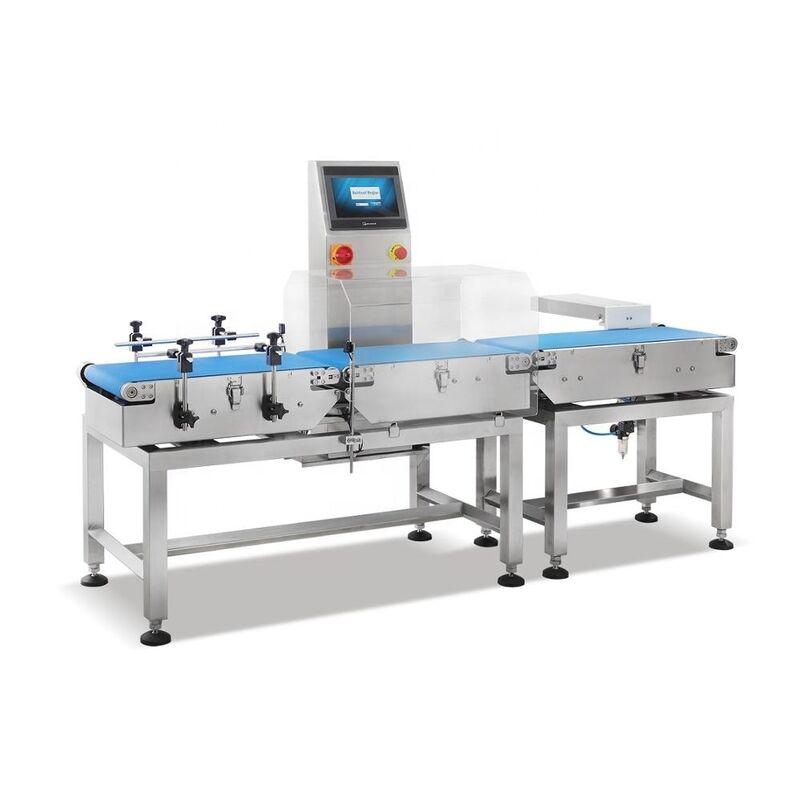

FO Check Weigher JZ-W1200g - Automatic Load Cell Check Weigher

The JZ-W1200g automatic check weigher is a precision industrial weighing system designed for high-speed production lines, ensuring product weight compliance and quality control.

Application

This automatic check weigher verifies whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, allowing only qualified packages to proceed to the next equipment in the production line.

Key Features

PLC with 10" color touch screen interface
Intelligent compact design construction
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell technology (original from Germany) ensuring high accuracy and stability
Solid SUS304 stainless steel structure for stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easy cleaning and maintenance
Emergency switch installation for user-friendly operation
Optional arm device for clear production situation display
Capacity to record up to 10 different product parameters

Technical Specifications

Model	JZ-W1200g
Control System	10" color touch screen
Weighing Range	10-1200 grams
Conveyor Speed	13-96 meters/min
Maximum Throughput Capacity	210 bags/min
Accuracy	±0.5 grams
Product Size Range	60<L<300mm; 30<W<220mm; 10<H<200mm
Minimum Scale	0.1 grams
Weigh Belt	450L * 220W mm
Conveyor Height	750mm ±50mm
Reject System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 Stainless Steel
Interface	Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension	1600L * 400W * 1510H mm
Gross Weight	200 KG

Optional Accessories

Network data management software
Front feeding FBC feedback control software
Printer
Indicator lamp
