| Model Number: | JZ-W25kg |
| MOQ: | 1 |

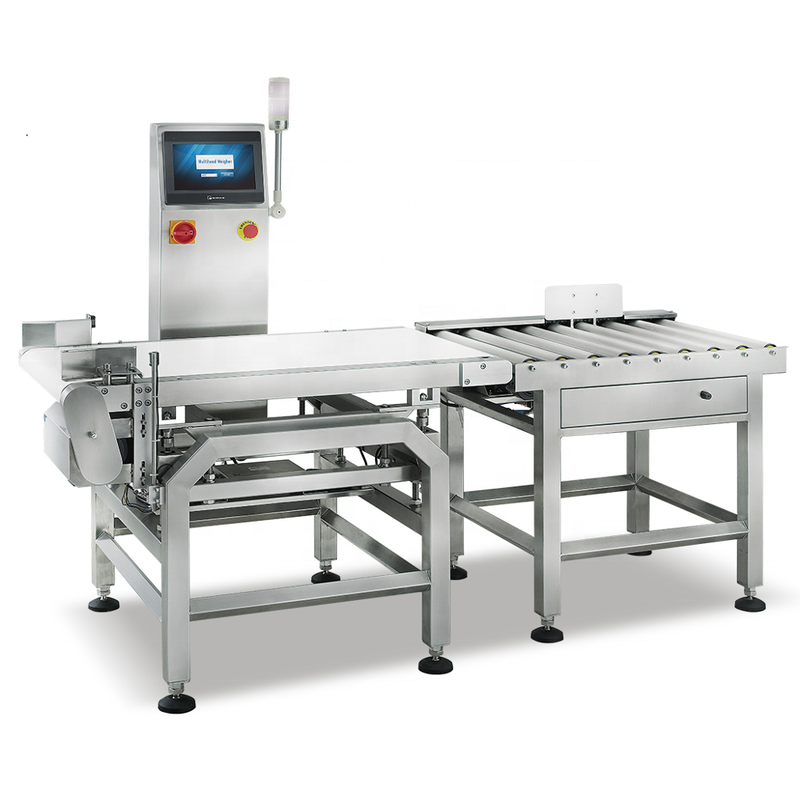

The Checkweigher with rejection JZ-W25kg is designed to verify whether individual package weights conform to preset specifications, automatically removing overweight and underweight products through various rejection mechanisms. Qualified packages proceed to subsequent equipment.
This weighing machine checks single pack weight compliance with preset standards and automatically removes non-conforming products using multiple rejection methods.
| Model | JZ-W25kg |
|---|---|
| Control System | 10" color touch screen |
| Weighing Range | 50-25000 grams |
| Conveyor Speed | 13-78 meter/min |
| Maximum Throughput Capacity | 500 bags/min |
| Accuracy | ±5 grams |
| Product Size | 60<L<420mm; 30<W<380mm; 10<H<430mm |
| Minimum Scale | 0.5 grams |
| Weigh Belt | 600mm L * 400mm W |
| Conveyor Height | 750mm ±50mm |
| Auto Rejector System | Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style |
| Waterproof Rating | IP66 |
| Power Supply | 220V/50HZ or 60HZ Single Phase |
| Machine Material | 304 Stainless Steel |
| Interface | Weight transmission to ink-jet printer (customer provides protocol) |
| Packing Dimension | 1900mm L * 550mm W * 1600mm H |
| Gross Weight | 300 KG |
