| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

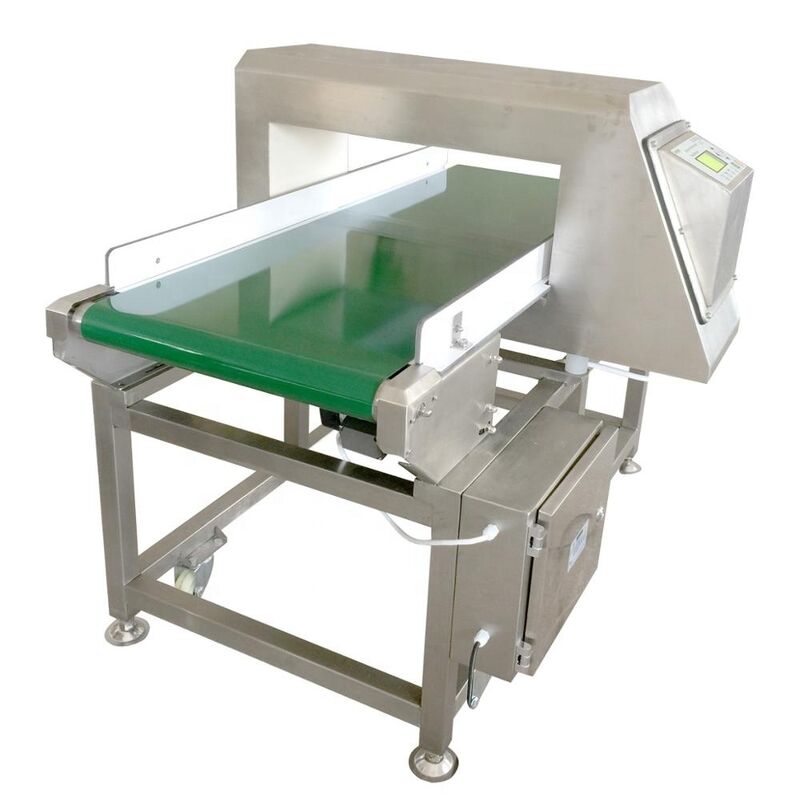

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithms, self-study, and full digital regulating functions. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effectiveness.
Model JZD-366 digital metal detector is primarily used for checking metal impurities that mix or drop in bakery products, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other occasions requiring metal detection. It can be applied in high temperature, low temperature, damp, dry, dusty, dewy, and other poor work environments.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Width of inspection window (mm) | 400 (customization available) |
| Height of inspection (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm System | Audible and visual alarm, automatic stop |
| Raw Material | SUS304 |
| Normal Machine Size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size) |
| Net Gross | 330kg (based on normal size) |
| Electrical Source (Power) | 110V/220V/380V 50Hz/60Hz (Power) 90W |
| Conveyor Speed | 25-30m/min (can be designed according to customer requirements) |
| Conveyor Height | 650mm±50mm (normal) - can be manufactured to customer needs |
