| Brand Name: | JuZhuo |
| Model Number: | DDRT-200-300 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | According To Customer Needs |
| Payment Terms: | T/T |

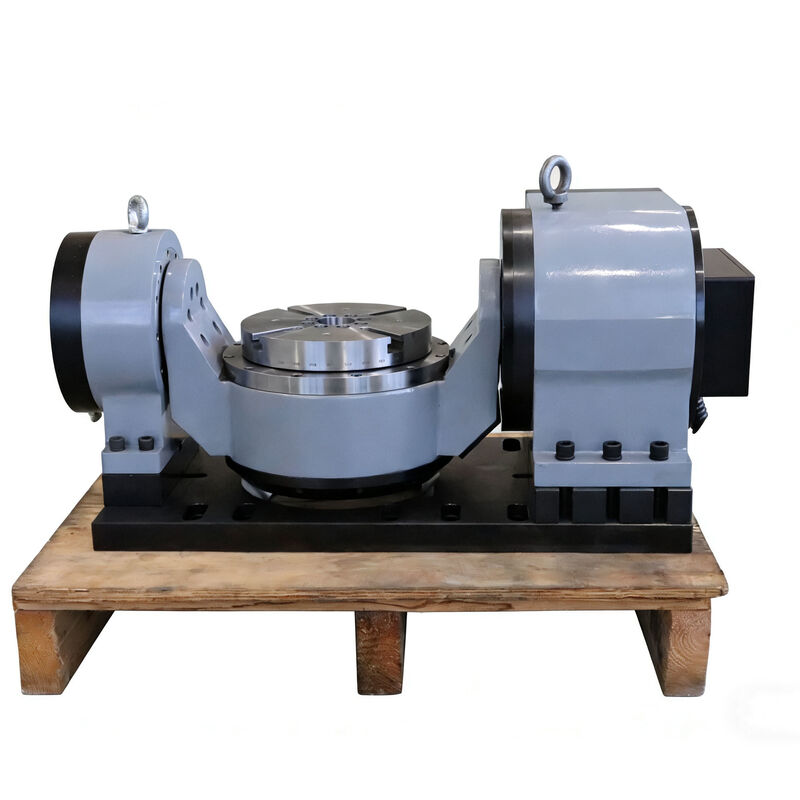

The 5th Axis Direct-Driver Rotary Table is a precision-engineered solution designed for modern CNC machining and automation systems. This advanced Five Axis Rotary Stage combines robust construction with innovative direct drive technology to deliver exceptional accuracy, reliability, and efficiency in multi-axis operations.
Featuring a sophisticated corrugated conduit outlet for optimal cable protection and organization, this rotary table ensures durability and prevents interference during high-speed rotations. The pneumatic clamping system at 6 Bar pressure on both C-axis and tilt-axis guarantees secure workpiece holding, significantly reducing slippage risk.
| Parameter | Specification |
|---|---|
| Center Height | 200 mm |
| Oscillation Rotation Range | C-axis: Continuous 360°; Tilt-axis: ±110° |
| Peak Dynamic Torque (Tp) | C-axis: 250 N·m; Tilt-axis: 130 N·m |
| Enclosure Protection Class | IP67 |
| Table End-face Runout | 8 μm |
| Rated Load Capacity | Horizontal Setup: 40 Kg; Inclined Setup: 20 Kg |
| Allowable Overturning Moment (Tm) | 217 N·m |
| Reduction Ratio | C-axis Direct Drive / Tilt-axis Direct Drive |
| Clamping Holding Torque | C-axis: 150 N·m; Tilt-axis: 450 N·m |
| Continuous Rated Torque (Tn) | C-axis: 27 N·m; Tilt-axis: 65 N·m |
The JuZhuo DDRT-200-300 Multi Axis Direct Drive Table is ideal for precision manufacturing applications including aerospace, automotive, mold making, and medical device production. Its advanced capabilities support complex multi-axis operations, intricate contouring, and high-speed milling with exceptional accuracy and repeatability.
Manufactured in Dongguan, China with ISO9001 and CE certifications. Flexible supply capability up to 1000 sets per month with minimum order quantity of 1 set. Custom packaging in wooden boxes with negotiable pricing and T/T payment terms. Comprehensive technical support, calibration services, software updates, and maintenance guidance available.
