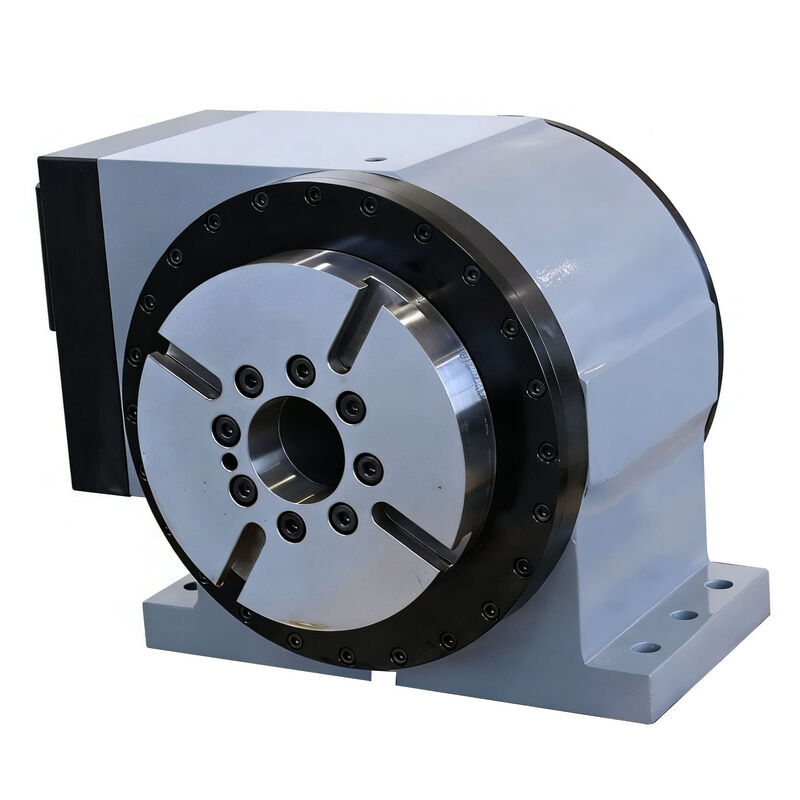

High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity

Name: High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
Brand: Dongguan Juzhuo Precision Machinery Co., Ltd.
SKU: DAR-170-02
Availability: InStock

Brand Name:	JuZhuo
Model Number:	DAR-170-02
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Table Diameter:

170 Mm

Overall Weight:

48 Kg

Shaft Mounting Form:

Horizontal

Rated Motor Torque:

65 N·m

Application:

Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.

Peak Motor Torque:

309 N·m

Cable Outlet Type:

Aviation Plug Connector

Max Rotating Speed:

200 R/min

Name:

Direct Drive Rotary Table

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

200r/Min Direct Drive Rotary Table

Direct Drive Rotary Table 4th Axis

High Speed Direct Drive Rotary Table

Product Description

Max Table Load Capacity 50 Kg 4th Axis Direct Driver Rotary Table

Product Overview

The 4th Axis Direct-Driver Rotary Table is a state-of-the-art solution designed to enhance CNC machining centers by providing precise and reliable rotational movement. This advanced rotary table serves as a Fourth Axis CNC Rotary Table, making it essential for complex machining tasks requiring an additional axis of rotation.

With direct-drive technology, this rotary table delivers exceptional accuracy, smooth motion, and high rigidity, ensuring superior performance across various industrial applications. It features a maximum rotating speed of 200 R/min, enabling efficient machining processes and reduced cycle times.

Key Features

Direct-drive motor delivering high acceleration, impressive torque, precise control, and zero backlash operation
Robust pneumatic clamping brake system providing reliable and secure holding power
Rotary spindle with large-bore, high-rigidity bearings for enhanced durability and stability
Ideal for high-speed machining of turbine blades, medical device parts, 3C electronic components, and precision workpieces
Aviation plug connector for secure electrical connections in demanding industrial environments
Natural cooling motor system for maintenance-free operation and extended lifespan

Technical Specifications

Parameter	Specification
Overall Weight	48 Kg
Hollow Bore Diameter	40 Mm
Motor Cooling Mode	Natural Cooling
Clamping Brake Torque	150 N*m
T-slot Specification	12H8
Max Table Load Capacity	50 Kg
Max Rotating Speed	200 R/min
Peak Motor Torque	309 N*m
Table Diameter	170 Mm
Protection Class	IP65

Product Images

Applications

The JuZhuo DAR-170-02 Fourth Axis Motorized Rotary Table is ideal for aerospace, automotive, mold making, and precision engineering industries. It enables multi-axis machining for creating complex geometries with high accuracy, particularly suited for intricate parts requiring simultaneous rotation and milling operations.

Customization & Ordering

Manufactured in Dongguan, China with ISO9001 and CE certification. Minimum order quantity is 1 set, packaged in wooden boxes. Supply capacity of 1000 sets per month with negotiable pricing. Delivery time arranged according to customer requirements with T/T payment terms.

Frequently Asked Questions

Q: What is the brand and model number?

A: JuZhuo DAR-170-02

Q: What certifications does it have?

A: ISO9001 and CE certified

Q: What is the minimum order quantity?

A: 1 set

Q: What are the payment terms?

A: T/T with negotiable pricing
