Direct Drive 4th Axis Rotary Table , 200r/min High Speed Rotary Table

Name: Direct Drive 4th Axis Rotary Table , 200r/min High Speed Rotary Table
Brand: Dongguan Juzhuo Precision Machinery Co., Ltd.
SKU: DAR-170-02
Availability: InStock

Brand Name:	JuZhuo
Model Number:	DAR-170-02
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Cable Outlet Type:

Aviation Plug Connector

Max Rotating Speed:

200R/min

Peak Motor Torque:

309 N·m

Application:

Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.

Clamping Brake Torque:

150 N·m

Shaft Mounting Form:

Horizontal

IP Protection Class:

IP65

Rated Motor Torque:

65 N·m

Name:

4th Axis Rotary Table

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

Direct Drive 4th Axis Rotary Table

4th Axis Rotary Table High Speed

200r/min High Speed Rotary Table

Product Description

48 Kg Overall Weight 4th Axis Direct Drive Rotary

Max Rotating Speed 200 R/min Perfect for Complex CNC Machining Tasks

Product Overview

The 4th Axis Direct-Driver Rotary Table is a state-of-the-art solution designed to enhance the capabilities and precision of CNC machines and automated manufacturing systems. This fourth axis motorized rotary table offers exceptional performance, combining robust construction with cutting-edge technology to deliver precise rotational positioning and smooth operation.

With a center height of 135 mm, this rotary table is engineered to provide optimal alignment and stability, making it suitable for a wide range of industrial applications including milling, grinding, and drilling. The IP65 protection class ensures reliable performance even in harsh industrial environments where exposure to contaminants and moisture is common.

Key Features

Direct-drive motor delivering exceptional performance with high acceleration, substantial torque, precise operation, and zero backlash
Integrated robust pneumatic clamping brake system for enhanced safety and reliability
Rotary spindle designed with large-bore, high-rigidity bearings for durability and stability
Ideal for high-speed machining of turbine blades, medical device components, 3C electronic parts, and other precision workpieces
170 mm table diameter with 12H8 T-slot specification for secure and flexible workpiece mounting

Technical Specifications

Parameter	Specification
Overall Weight	48 Kg
Max Rotating Speed	200 R/min
Hollow Bore Diameter	40 Mm
Cable Outlet Type	Aviation Plug Connector
T-slot Specification	12H8
Shaft Mounting Form	Horizontal
Clamping Brake Torque	150 N*m
Motor Cooling Mode	Natural Cooling
Center Height	135 Mm
Peak Motor Torque	309 N*m

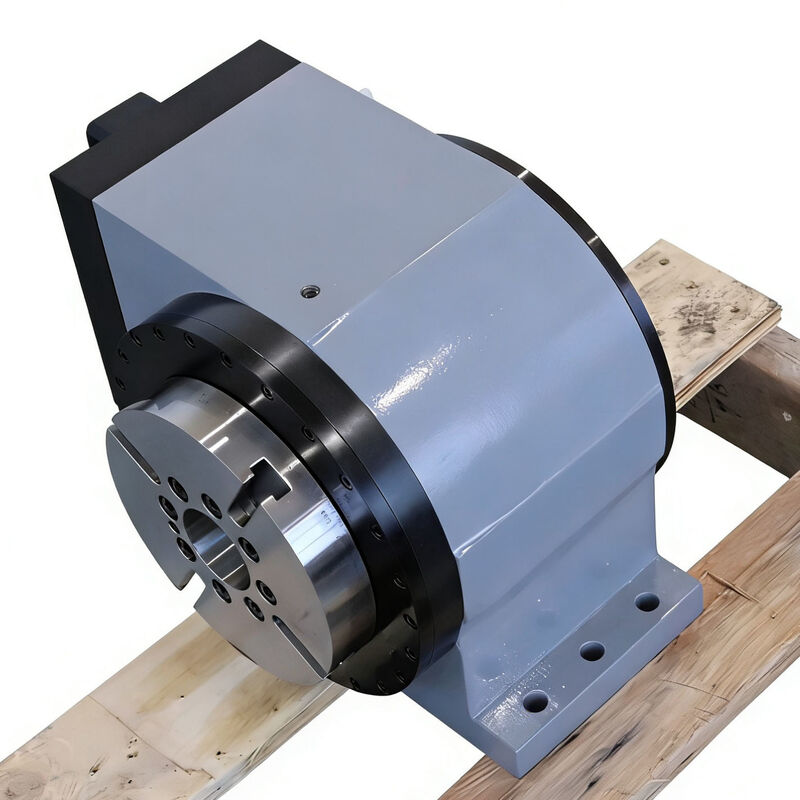

Product Image

Applications

The JuZhuo DAR-170-02 Direct-Drive CNC Rotary Table is a precision-engineered 4th Axis Rotary Positioner designed to meet the rigorous demands of modern manufacturing environments. Certified with ISO9001 and CE standards, this direct drive rotary table combines reliability with exceptional performance.

High-speed machining of turbine blades requiring precision and stability
Medical equipment sector for intricate medical parts manufacturing
Production of 3C electronic components where miniaturization and precision are critical
Aerospace, automotive, and general manufacturing applications

Customization Services

JuZhuo offers customized Product Customization Services for the DAR-170-02 model. With a minimum order quantity of just 1 set, we provide flexible pricing negotiable to suit your project needs. Each unit is carefully packaged in a sturdy wooden box to guarantee safe delivery.

Delivery times are tailored according to customer requirements, supported by a supply ability of 1000 sets per month. Payment terms are flexible, with T/T accepted for customer convenience.

Technical Support & Services

Our comprehensive support includes installation guidance, calibration services, troubleshooting assistance, software integration support, spare parts availability, and training sessions for operators and maintenance personnel.

Packing & Shipping

Each unit is securely placed in custom-fitted foam padding within a sturdy, double-walled cardboard box to prevent any damage from shocks or vibrations. We offer multiple shipping options including standard ground, expedited air freight, and international courier services with full insurance and tracking.

Frequently Asked Questions

What is the brand and model number of the 4th Axis Direct-Driver Rotary Table?

The product is branded JuZhuo, and the model number is DAR-170-02.

Where is the JuZhuo DAR-170-02 rotary table manufactured?

It is manufactured in Dongguan, China.

What certifications does the JuZhuo DAR-170-02 rotary table have?

The rotary table holds ISO9001 and CE certifications.

What is the minimum order quantity and supply ability for this product?

The minimum order quantity is 1 set, and the supply ability is 1000 sets per month.

How is the product packaged and what are the payment terms?

The product is packaged in a wooden box, and the payment terms are T/T (Telegraphic Transfer).
