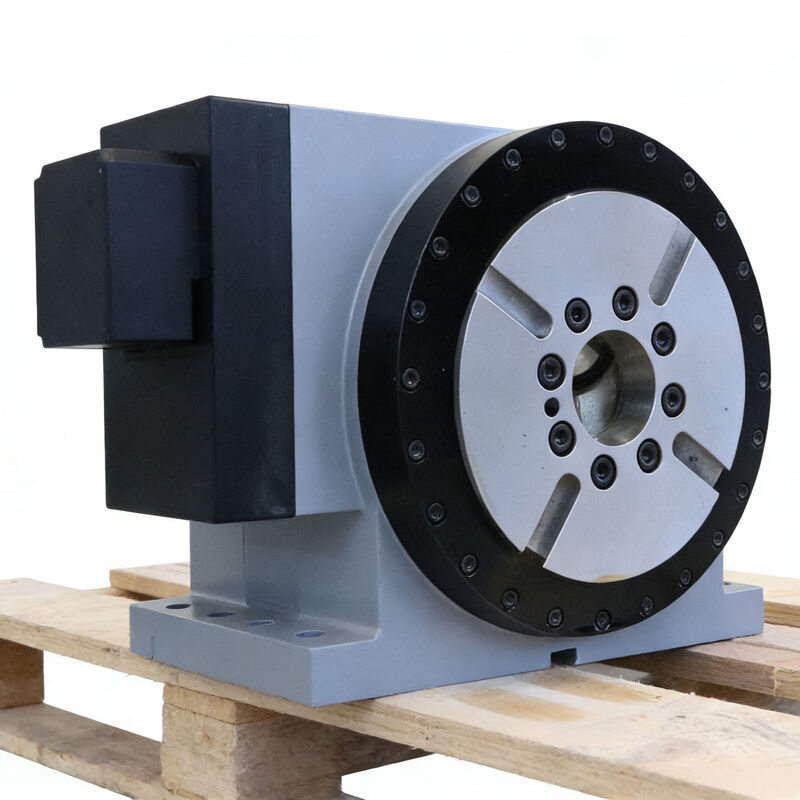

High Precision Direct Drive Rotary Table Fourth Axis CNC Rotary Table

Name: High Precision Direct Drive Rotary Table Fourth Axis CNC Rotary Table
Brand: Dongguan Juzhuo Precision Machinery Co., Ltd.
SKU: DAR-170-02
Availability: InStock

Brand Name:	JuZhuo
Model Number:	DAR-170-02
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Rated Motor Torque:

65 N·m

Cable Outlet Type:

Aviation Plug Connector

Shaft Mounting Form:

Horizontal

Application:

Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.

Peak Motor Torque:

309 N·m

Hollow Bore Diameter:

40 Mm

Center Height:

135 Mm

Max Table Load Capacity:

50 Kg

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

High Precision Direct Drive Rotary Table

Direct Drive Rotary Table Fourth Axis

Fourth Axis CNC Rotary Table

Product Description

12H8 T-slot Specification 4th Axis Direct-Driver Rotary Table

Product Overview

The Fourth Axis Rotary Table enhances CNC machining centers by providing an additional axis of rotation. Engineered with horizontal shaft mounting, this high-precision rotary table is ideal for applications demanding reliability and accuracy in industries requiring meticulous machining processes.

Featuring a rated motor torque of 65 N·m, this rotary table ensures smooth, consistent rotation for precise positioning and repeatability during complex operations. With a maximum table load capacity of 50 kg and 170 mm table diameter, it offers a compact yet versatile platform that maintains rigidity for high-speed machining tasks.

This equipment is particularly suited for high-speed machining in aerospace, medical equipment manufacturing, and electronics industries, handling turbine blades, medical parts, and 3C electronic components with precision.

Key Features

Direct-drive motor providing rapid acceleration, substantial torque, high precision, and zero backlash
Built-in pneumatic clamping brake system for reliable and secure clamping
Rotary spindle with large-bore, high-rigidity bearings for durability and precision
Ideal for high-speed machining of complex components including turbine blades, medical device parts, and 3C electronic products

Technical Specifications

Motor Cooling Mode	Natural Cooling
Application	High-speed machining of turbine blades, medical equipment parts, 3C electronic components
Max Rotating Speed	200 R/min
Clamping Brake Torque	150 N·m
Max Table Load Capacity	50 kg
Rated Motor Torque	65 N·m
Cable Outlet Type	Aviation Plug Connector
IP Protection Class	IP65
Overall Weight	48 kg
Hollow Bore Diameter	40 mm

Applications

The JuZhuo DAR-170-02 Fourth Axis CNC Rotary Table meets demanding needs in high-precision machining environments. Certified with ISO9001 and CE, this direct drive rotary table excels in:

High-speed machining of turbine blades for aerospace and energy sectors
Production of intricate medical equipment parts with tight tolerances
Manufacturing of 3C electronic components including smartphones and tablets

With a center height of 135 mm and 40 mm hollow bore diameter, it integrates seamlessly into various machining centers, enhancing productivity and flexibility.

Customization Services

JuZhuo offers professional customization services for the DAR-170-02 Fourth Axis Rotary Table to meet diverse industrial requirements. Features include:

Center height: 135 mm, Table diameter: 170 mm
Rated motor torque: 65 N·m, Max load capacity: 50 kg
Horizontal shaft mounting form
Minimum order quantity: 1 set
Supply ability: 1000 sets per month
Negotiable pricing and flexible delivery times
Payment via T/T
Secure wooden box packaging

Support & Services

Our comprehensive support includes:

Technical assistance for installation, troubleshooting, and maintenance
Detailed product manuals and software updates
Calibration support and custom configuration
Spare parts and upgrade components
Training sessions for optimal equipment utilization

Packaging & Shipping

Each unit is securely packaged in custom-fit foam inserts within sturdy double-walled cardboard boxes to prevent damage during transit. We partner with reliable carriers worldwide, providing tracking information and insurance options for secure delivery.

Frequently Asked Questions

Q1: What is the brand and model number of the 4th Axis Direct-Driver Rotary Table?

A1: The rotary table is branded JuZhuo, and the model number is DAR-170-02.

Q2: Where is the JuZhuo DAR-170-02 rotary table manufactured?

A2: It is manufactured in Dongguan, China.

Q3: What certifications does the JuZhuo 4th Axis Direct-Driver Rotary Table have?

A3: This product is certified with ISO9001 and CE.

Q4: What is the minimum order quantity and pricing for the DAR-170-02 rotary table?

A4: The minimum order quantity is 1 set, and the price is negotiable based on order details.

Q5: How is the DAR-170-02 rotary table packaged and what are the delivery terms?

A5: The rotary table is packaged in a wooden box. Delivery time is according to customer needs.

Q6: What are the payment terms and supply ability for this product?

A6: Payment is accepted via T/T, and the supply ability is 1000 sets per month.
