CNC Machining 4th Axis Roller Cam Rotary Table For Precision Engineering

CNC Machining 4th Axis Roller Cam Rotary Table For Precision Engineering

Brand Name:	JuZhuo
Model Number:	NCT
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Document:

NCT-630 .pdf

Radial Runout:

0.01 Mm

Name:

Roller Cam Rotary Table

Motor Type:

Stepper Or Servo Motor Compatible

Standard Locating Key:

18H7

Vertical Mount Perpendicularity:

0.02 Mm

Rotation Angle:

360 Degrees Continuous Rotation

Axial Runout:

0.01~0.015 Mm

Drive Mechanism:

Roller Cam

Table Diameter:

Varies (commonly 170mm To 630mm)

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

CNC Machining Roller Cam Rotary Table

Precision Engineering Roller Cam Rotary Table

CNC Machining Rotary Table

Product Description

CNC Machining 4th Axis Roller Cam Rotary Table

Standard Locating Key 18H7 designed for rotary indexing and accurate angular positioning

Product Overview

The 4th Axis Roller Cam Rotary Table is a high-precision rotary indexing solution designed to enhance the capabilities of CNC machining centers and automation systems. This advanced rotary table offers exceptional accuracy and reliability, making it an essential component for applications requiring precise rotational positioning and indexing.

Key features include remarkable horizontal mount parallelism within 0.02 mm tolerance, ensuring perfect alignment during operation. The table is compatible with both stepper and servo motors and supports leading servo brands including Fanuc, Syntec, and Huazhong.

Key Features

High precision with table flatness of 0.02 mm
360 degrees continuous rotation for versatile machining operations
Reliable roller cam drive mechanism ensuring smooth and accurate motion
Standard T-slot size of 12H7 for secure workpiece mounting
Standard accessories including oil sight glass, lifting eye, oil filling port, and main & tailstock brake port
Ideal for applications requiring 4th Axis Indexing Rotary Table functionality

Technical Specifications

Center Distance Tolerance of Holes	±0.015 mm
Table Flatness	0.02 mm
Axial Runout	0.01~0.015 mm
Radial Runout	0.01 mm
Standard Locating Key	18H7
Horizontal Mount Parallelism	0.02 mm
Table Diameter	Varies (170mm to 630mm)
Application	CNC Machining, Automation, Precision Positioning
Motor Type	Stepper or Servo Motor Compatible

Model Specifications

Model	Table Dia	Center Bore	Reduction Ratio	Load (Without Tailstock)	Load (With Tailstock)	Indexing Accuracy	Repeat Accuracy
NCT170	Φ170mm	Φ50H7	1:40	75kg	150kg	<30 arc.sec	<8 arc.sec
NCT200	Φ200mm	Φ50H7	1:40	-	-	-	-
NCT250	Φ250mm	Φ50H7	1:60	100kg	-	±20 arc.sec	33 arc.sec
NCT320	Φ320mm	Φ90H7	1:60	180kg	350kg	±20 arc.sec	35 arc.sec
NCT400	Φ400mm	-	1:60	260kg	550kg	±20 arc.sec	4 arc.sec
NCT630	Φ630mm	-	1:60	500kg	1200kg	±10 arc.sec	-

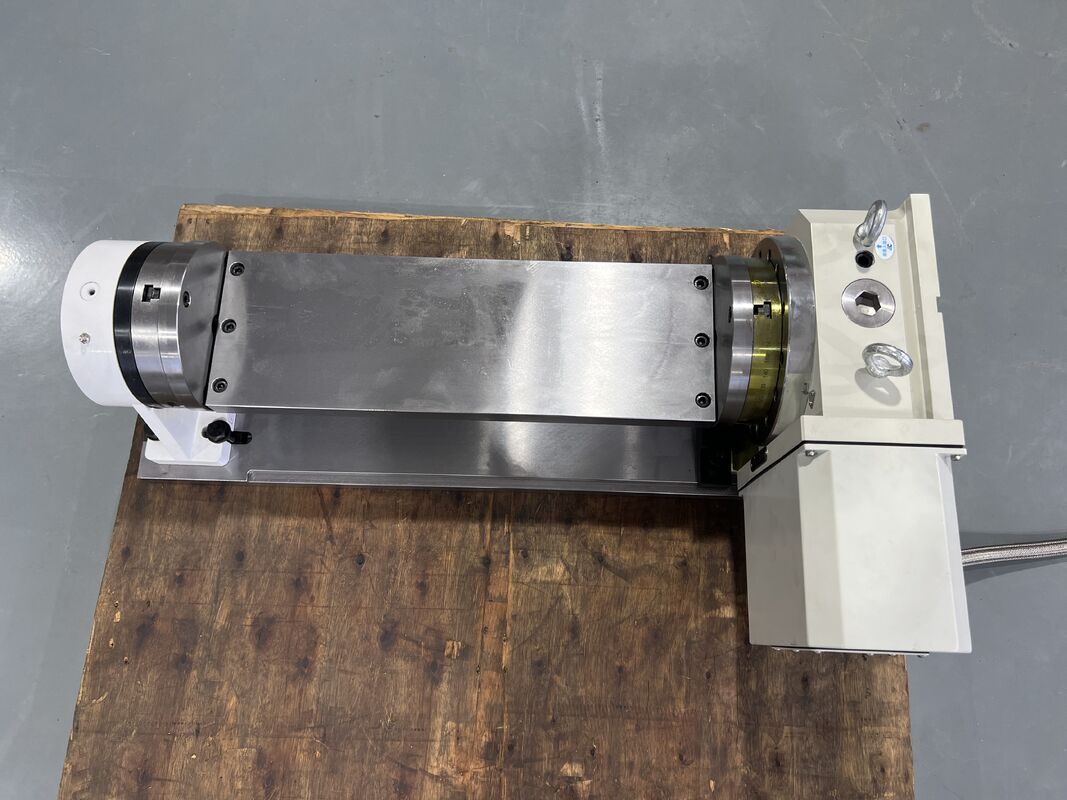

Product Image

Applications

The JuZhuo 4th Axis Roller Cam Rotary Table is widely used in aerospace component machining, automotive part manufacturing, mold making, and precision engineering. Its ability to rotate workpieces along a fourth axis enables intricate operations like contouring, drilling, milling, and grinding without manual repositioning.

Ordering Information

Brand: JuZhuo | Model: NCT | Origin: Dongguan, China | Certifications: ISO9001, CE

Minimum Order: 1 set | Supply Ability: 1000 sets/month | Packaging: Wooden Box

Delivery: Arranged per customer needs | Payment: T/T (Telegraphic Transfer)

Support & Services

Comprehensive technical support includes installation assistance, setup guidance, programming help, and troubleshooting. We provide detailed user manuals, maintenance guides, repair services, and training sessions to ensure optimal performance and longevity.

Packaging & Shipping

Each unit is securely wrapped with protective materials and placed in sturdy reinforced cardboard or wooden crates. Shipping options include standard ground freight, expedited air freight, or courier services with tracking information provided.
