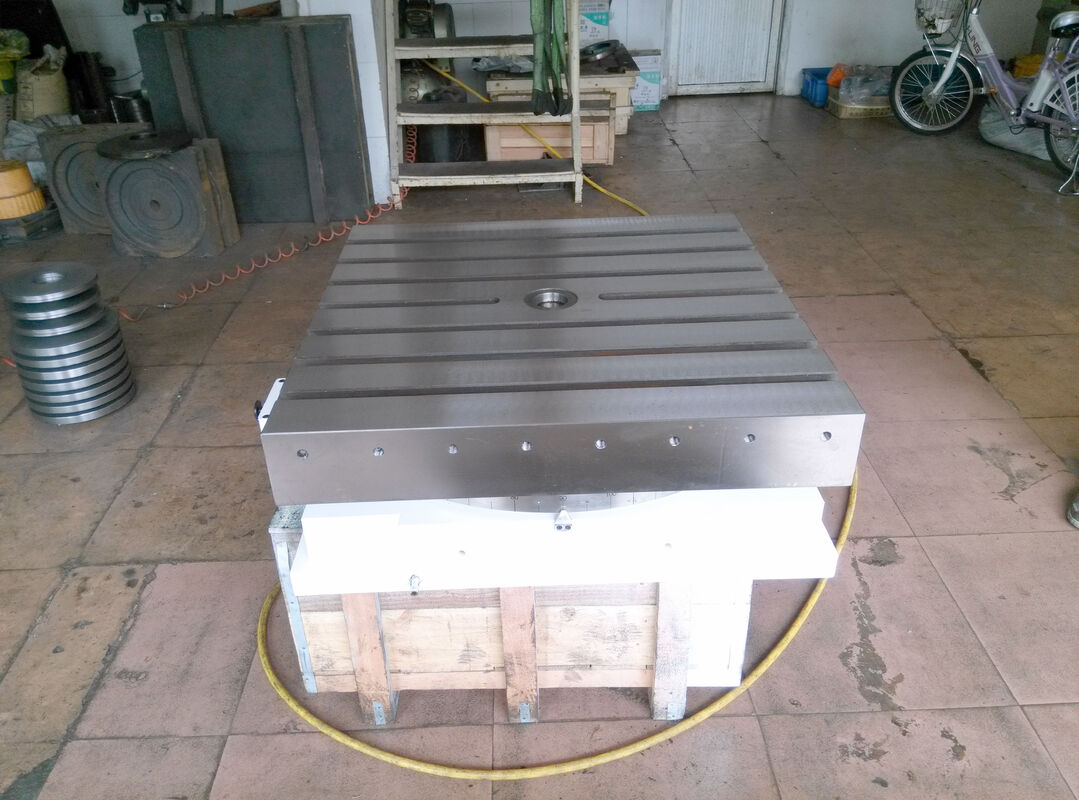

Air Powered Pneumatic Indexing Table Delivering ±3 Sec Accuracy 500 6000 Kg Capacity

Name: Air Powered Pneumatic Indexing Table Delivering ±3 Sec Accuracy 500 6000 Kg Capacity
Brand: Dongguan Juzhuo Precision Machinery Co., Ltd.
SKU: HCT Series
Availability: InStock

Brand Name:	JuZhuo
Model Number:	HCT Series
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Document:

HCT Series.pdf

Max. Horizontal Load:

500 Kg To 6,000 Kg (model-dependent)

Table Size:

300×300 Mm To 1200×1200 Mm (square Series)

T-Slot Size:

14H7 To 22H7

Drive Type:

Manual Rotary Drive

Application:

High-precision Machining (boring, Milling, Grinding)

Productname:

Pneumatic Indexing Rotary Table

Drivetype:

Pneumatic

Clamping:

Pneumatic Lock/unlock (air Supply: 5–8 Kg/cm)

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

Air Powered Pneumatic Indexing Table

±3 Sec Accuracy Rotary Table

500 6000 Kg Capacity Indexing Table

Product Description

Durable Air Powered Indexing Rotary Table

The Pneumatic Indexing Rotary Table is a precision-engineered rotary table designed for applications requiring highly accurate and repeatable positioning. This device combines the reliability of pneumatic drive systems with superior indexing accuracy, making it an ideal solution for automated manufacturing processes, assembly lines, and machining operations.

Key Features

Product Name: Pneumatic Indexing Rotary Table
Material: High-quality Aluminum Alloy for durability and lightweight performance
Drive Type: Pneumatic, ensuring smooth and efficient operation
T-Slot Size: Available in sizes ranging from 14H7 to 22H7 for versatile mounting options
Precision: Flatness and runout accuracy between 0.01 mm to 0.03 mm across the series
Table Size: Square series ranging from 300×300 mm up to 1200×1200 mm
Also known as Pneumatic Rotary Positioning Table and Air Operated Indexing Rotary Table
Ideal for precision positioning and indexing tasks in automated systems
Robust design suitable for industrial environments

Technical Specifications

Parameter	Specification
Product Name	Pneumatic Indexing Rotary Table
Rotation Direction	Bi-directional (clockwise / Counterclockwise)
Indexing Accuracy	±3 Seconds (360° Full Indexing), ±2 Seconds (72 Divisions)
T-Slot Size	14H7 To 22H7
Max. Vertical Load	1,200 Kg To 7,000 Kg (model-dependent)
Material	Aluminum Alloy
Drive Type	Manual Rotary Drive, Pneumatic
Max. Horizontal Load	500 Kg To 6,000 Kg (model-dependent)
Flatness / Runout	0.01-0.03 Mm Precision Range Across The Series

Applications

The JuZhuo Pneumatic Indexing Rotary Table, model HCT Series, is a versatile and reliable solution designed for a wide range of industrial applications. Certified by ISO9001 and CE, this Air Powered Indexing Rotary Table ensures high precision and durability for various manufacturing and automation processes.

This positioning system is widely used in assembly lines, machining centers, welding stations, and inspection setups where precise and repeatable angular positioning is critical. Its capacity to handle weights ranging from 90 Kg to 2,000 Kg makes it suitable for both light and heavy-duty applications.

Customization Options

JuZhuo offers customized Pneumatic Rotary Table Indexer solutions under the HCT Series model. Our rotary tables support bi-directional rotation and are crafted from high-quality aluminum alloy, ensuring durability and performance. We accommodate minimum order quantities starting at just 1 set, with pricing negotiable to suit your specific requirements.

Frequently Asked Questions

What brand manufactures the Pneumatic Indexing Rotary Table?

The Pneumatic Indexing Rotary Table is manufactured by JuZhuo.

What certifications does the JuZhuo HCT Series have?

The product is certified with ISO9001 and CE certifications.

What is the minimum order quantity?

The minimum order quantity is 1 set.

How is the product packaged for delivery?

The product is packaged in a wooden box to ensure safe transportation.

What are the payment terms and delivery time?

Payment terms are T/T, and the delivery time is according to customer needs.
