| Brand Name: | JuZhuo |
| Model Number: | 4th SKT Series |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | According To Customer Needs |
| Payment Terms: | T/T |

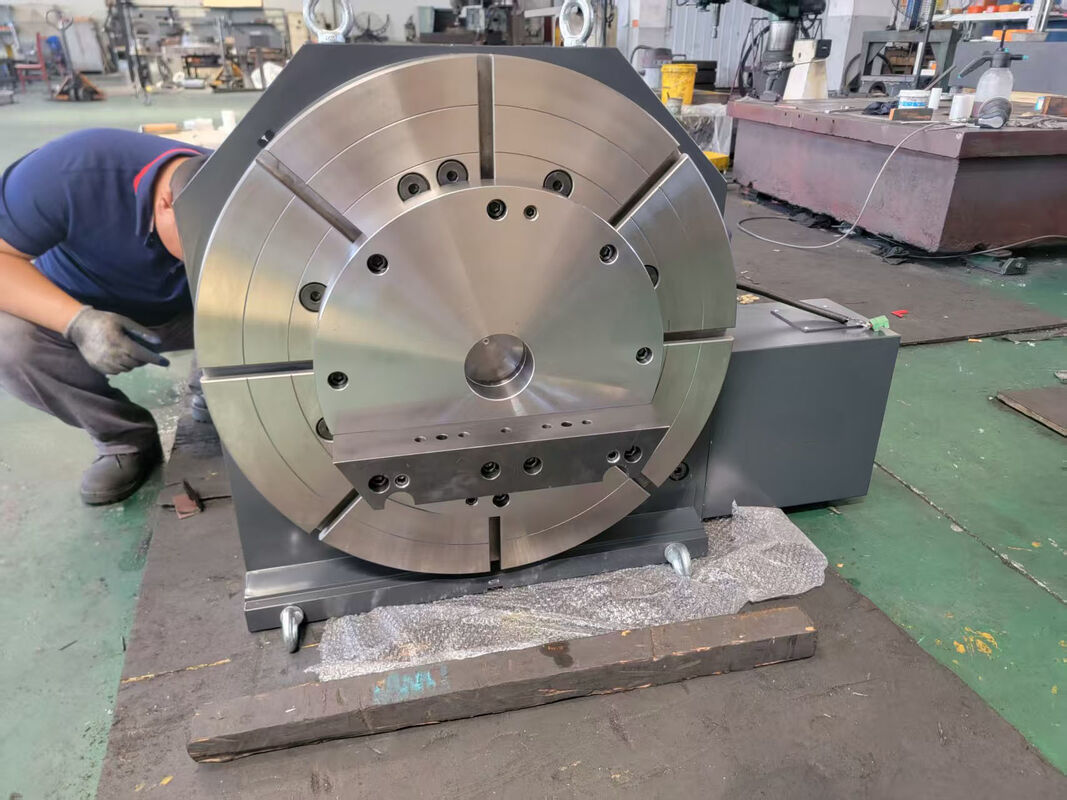

The 4th Axis Worm Gear Rotary Table is an advanced precision rotary device designed for modern machining and automation systems. Featuring a robust double-lead worm gear set transmission structure, this rotary table ensures exceptional accuracy and smooth operation for precise rotational positioning and indexing.
The double-lead worm gear design enhances transmission efficiency and load-carrying capacity, delivering reliable performance under heavy-duty working conditions. Engineered to accommodate a wide range of workpiece moments of inertia from 259 to 159,000 Kg*cm*s, this table handles both small components and large workpieces with equal ease.
| Material | High-grade Steel |
| Servo Motor Power | ≥1.0kW ~ ≥11.3kW (Max ≥3.8kW For Partial Heavy Models) |
| Drive Mode | Servo Motor Drive |
| Application | Precision Machining And Milling |
| Max Driving Torque | 300 ~ 30,000 N*m |
| Max Rotation Speed | 1.0 ~ 11.1 R/min |
| Total Reduction Ratio | 1:180 ~ 1:2160 |
| T-slot Width | 6-12mm ~ 12-28mm |
| Minimum Indexing Unit | 0.001° |
| Horizontal Load Capacity | 250kg ~ 35,000kg |
The JuZhuo 4th SKT Series Rotary Table with Worm Gear Drive is essential for high-precision machining and milling applications. Certified by ISO9001 and CE standards, this CNC Fourth Axis Worm Gear Table is widely used in aerospace, automotive, mold manufacturing, and metalworking industries.
Its ability to handle servo motor power from ≥1.0kW up to ≥11.3kW allows it to deliver exceptional torque and smooth rotational movement, critical for complex milling and cutting operations. The hydraulic clamp torque ranging from 300 to 2000 N*m enhances stability and accuracy during machining.
The JuZhuo 4th SKT Series features a robust worm gear ratio ranging from 1:90 to 1:220, ensuring precise rotational positioning. Crafted from high-grade steel and driven by servo motor drive, it guarantees durability and accurate control.
Minimum order quantity: 1 set. Each unit is packaged in wooden boxes for safe delivery. Delivery time is tailored according to customer needs, with a supply ability of 1000 sets per month. Payment terms: T/T.
Comprehensive technical support includes detailed user manuals for installation, operation, and maintenance. Our technical team provides troubleshooting, repair guidance, and replacement parts to ensure optimal performance.
We offer calibration, customization, and upgrade services to meet specific requirements. Regular maintenance is recommended to prolong lifespan and maintain accuracy.
Each unit is securely placed in sturdy wooden crates with protective padding to prevent damage during transit. We offer flexible shipping options including air freight, sea freight, and express courier services.
Shipping times typically range from 7 to 30 days depending on destination and method. Tracking information is provided upon dispatch. Customized packaging and shipping solutions available for bulk orders.
