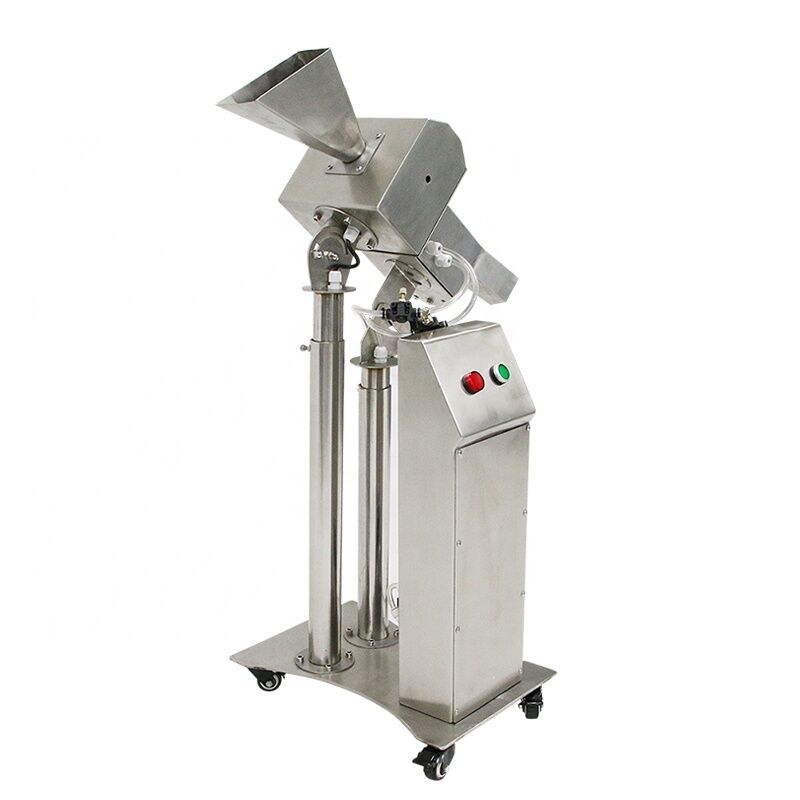

Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40

The Gravity Metal Separator JZD-60-40 is specifically designed for detecting and removing metal impurities from pharmaceutical products, ensuring product purity and safety.

Primarily used for detecting ferrous, non-ferrous, copper, aluminum, and other metal impurities in pharmaceutical drugs and related products.

• Control System: MEIDELE
• Electromagnetic Valve: Standard
• Air Cylinder: SMC
• Air Cylinder Filter: SMC
• Machine Material: Full stainless steel construction
• Working Voltage: 220V AC (±10%), 50/60Hz
• Input Current: 80/160mA
• Fuse: 2 pieces 315mA
• Working Environment: -10°C to 60°C
• Waterproof Standard: IP65
• Input Connectors: Testing button, Hand separator, Reset
• Output Connector: Metal detector interface

• Air Compression: 2.5KG, 8mm soft tube connection
• Air Consumption: 0.4 liters per rejection action
• Rejection Time: 0.2-2.5 seconds

The metal separator consists of two main sections: metal detection and rejection, both controlled by a central control box. The metal detector generates a high-frequency magnetic field. When metals pass through the sensor, they influence the magnetic field, triggering a signal to the rejection device for immediate removal.
