| Model Number: | JZD-P16 |
| MOQ: | 1 |
| Price: | €3,035.16 |

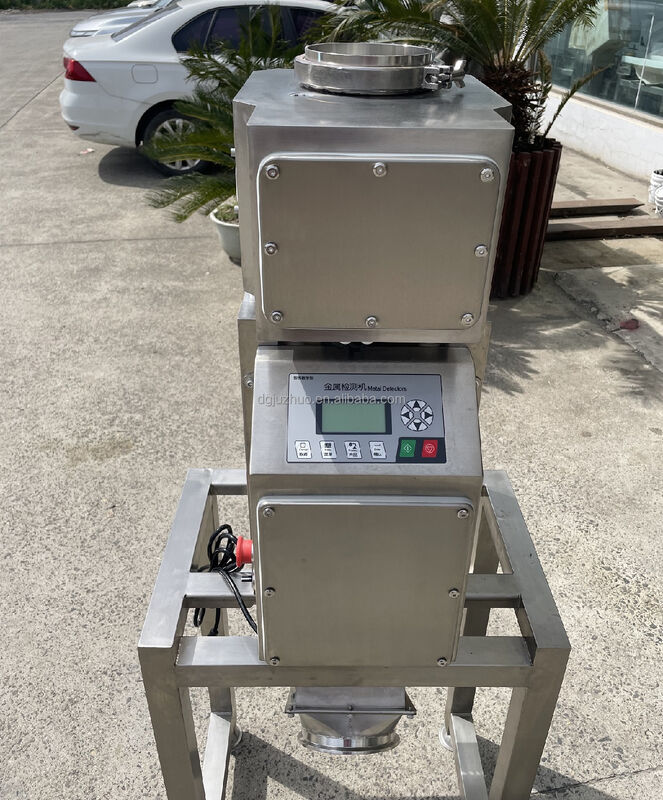

Pharmaceutical food pellet particle pill candy medicine biscuit inline metal detector for inclining free falling vertical output JZD-P16
To detect and separate all metals including copper, iron, zinc, stainless steel, and other metallic contaminants.
| Operating voltage | 220 VAC (+/-10%, 50/60 Hz) |
| Input current | 80/160 mA |
| Ambient temperature | -10/60 degrees |
| Case Material | Stainless Steel |
| Contact parts with material | PP plastic and PTFE |
| Compressed air | 4-8 kg, connected with 6-8 mm hose |
| Gas consumption | 0.6 liters each separate action |
| Level of protection | IP 54 |
| Separation time | 0.2 - 2.5 seconds (No level can be adjusted) |
| Detection accuracy | 0-10 stepless adjustable (recommended transferred to scale 9) |
Usage: To detect plastic granules with falling body method
Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm
| Type (Internal Detection Tube Dia) | Capacity (l/h) | Detection Accuracy |
|---|---|---|
| 80 type | 5000 l/h | 0.7mm iron, stainless steel; 1.2mm copper |
| 100 type | 10000 l/h | 0.8mm iron, stainless steel; 1.5mm copper |
| 150 type | 20000 l/h | 1.2mm iron, stainless steel; 2.0mm copper |
| 200 type | 40000 l/h | 1.5mm iron, stainless steel; 2.0mm copper |
| 250 Type | 65,000 l/h | 2.0mm iron, stainless steel; 2.5mm copper |
