| Brand Name: | Juzhuo |
| Model Number: | JZD-22 |
| MOQ: | 1 |

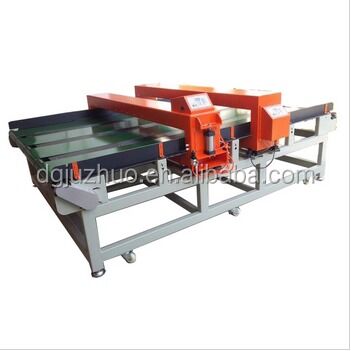

Textile machinery/ needle detector JZD-22
Application
Textile machinery/ needle detector JZD-22 is mainly used for detecting various needle breakage,steel wire,lead,copper,stainless steel and other colored metals that load or drop in raw materials and products in the field of toy, costume, shoemaking, chemical industry, leather, knitting,etc. and it also can be used for checking metal impurities inside aluminum packing products
Functions
A,good performance with high sensitivity and strong interference immunity.
B,light structure and move conveniently
C,various of specifications of detection size which can be chosen at will according to customer's requirements
D,adjustable conveyor speed,applicable to pipeline operations
E,conveyor belt is easy to diassemble and clear,
F,alarm for audbible and visual automatic stop
Technical Parameter
Normal height of inspection window(mm):100-125-150-200
Normal width of inspection window(mm) :600
Sensitivity-Diameter of steel ball(mm) :Φ1.0-2.0(10 levels adjustable)
Power: 140W
Size: 1950(L)×1100(W)×1200(H)mm
Weight: 150kg
Electrical source: 220V 50Hz
