| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

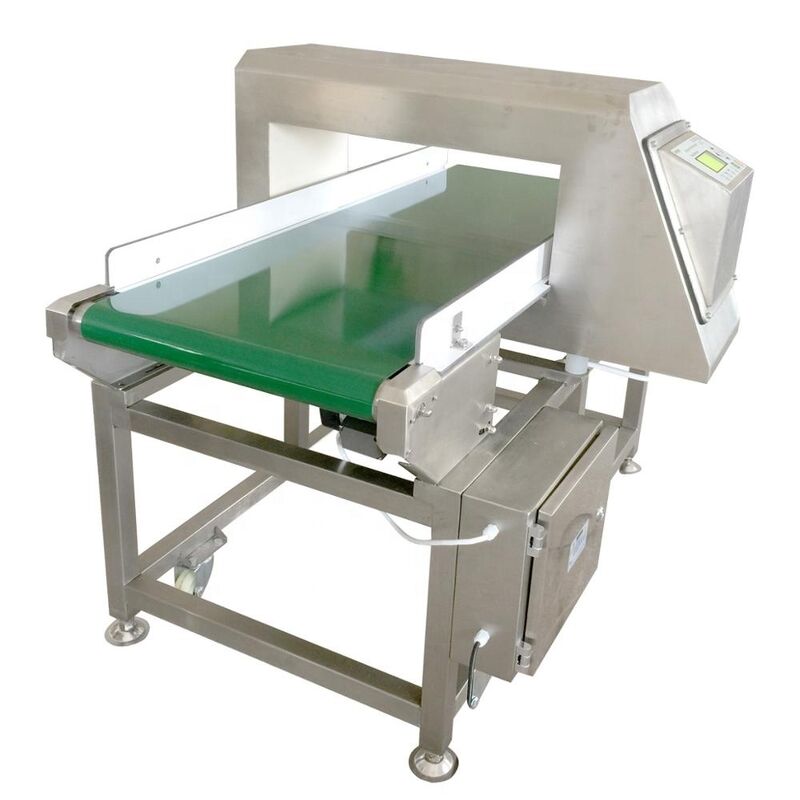

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions. This ensures the metal detector's detecting capacity is more stable and dependable, significantly improving detection effectiveness.
Model JZD-366 digital metal detector is primarily used for checking metal impurities mixed in or dropped onto bakery items, pizza, hamburgers, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate effectively in high temperature, low temperature, damp, dry, dusty, dewy, and other challenging work environments.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Width of inspection window (mm) | 400 (customization available) |
| Height of inspection (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm | Audible and visual alarm with automatic stop |
| Raw material | SUS304 |
| Normal machine size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size) |
| Net Gross | 330kg (based on normal size) |
| Electrical source (Power) | 110V/220V/380V 50Hz/60Hz (Power) 90W |
| Conveyor speed | 25-30m/min (can be designed according to customer requirements) |
| Conveyor height | 650mm±50mm (normal) can be manufactured according to customer needs |
