| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

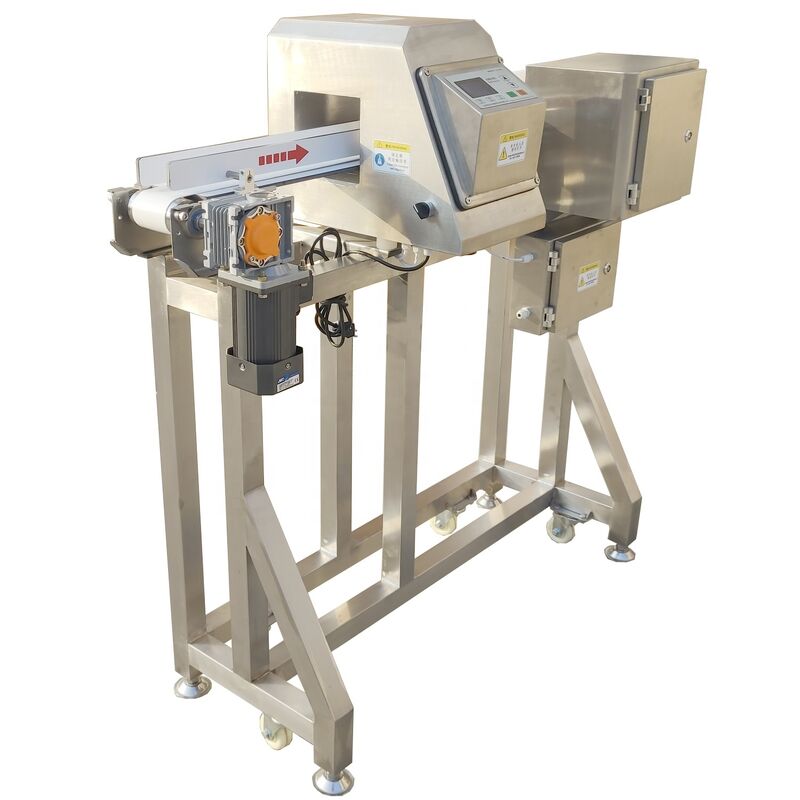

New arrivals bedding article needle detector machine for cake JZD-366
Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effect.
Model JZD-366 digital metal detector is mainly used for checking metal impurities which mix or drop in bakery, pizza, hamburger, puree, sauce, vegetable tobaccos and other occasions that require metal detection. It can apply to high temperature, low temperature, damp, dry, dust, dew and other poor work environments.
| Parameter | Specification |
|---|---|
| Model | JZD-366 |
| Width of Inspection Window (mm) | 400 (customization available) |
| Height of Inspection (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm System | Audible and visual alarm, automatic stop |
| Raw Material | SUS304 |
| Normal Machine Size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size) |
| Net Gross | 330kg (based on normal size) |
| Electrical Source (Power) | 110V/220V/380V 50Hz/60Hz (Power) 90W |
| Conveyor Speed | 25-30m/min (can be designed according to customer's requirements) |
| Conveyor Height | 650mm±50mm (normal) can be manufactured as per customer's needs |
