| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

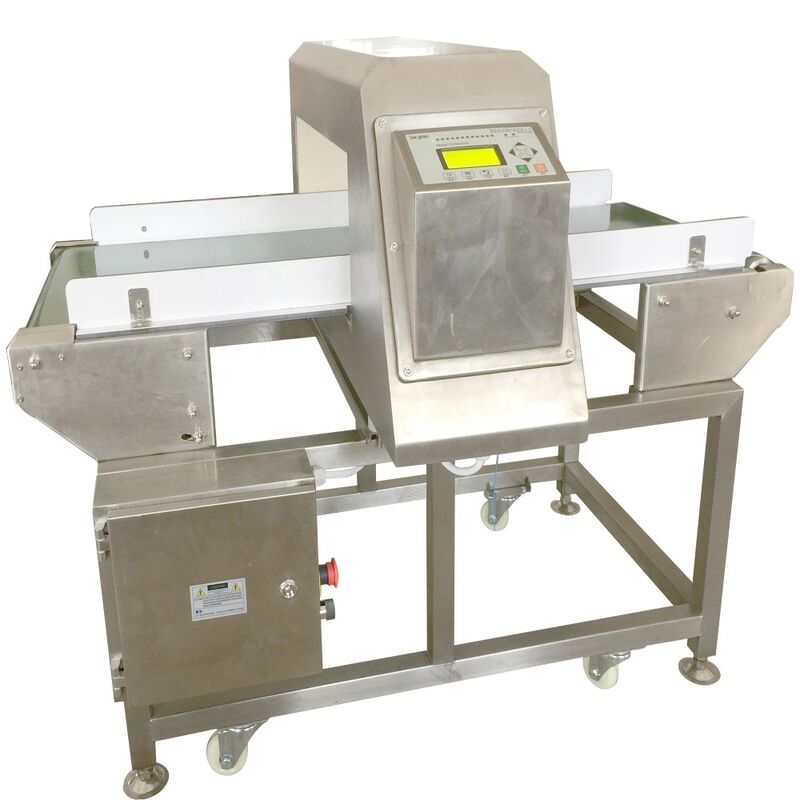

The JZD-366 is an intelligent LCD display digital metal detector featuring advanced two-way signal detection circuit technology. It utilizes cutting-edge electromagnetic detection and digital signal processing with DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with advanced detecting algorithms for superior performance.
Designed for detecting metal impurities in various food products including seafood, frozen food, fish, noodles, bakery items, and other applications requiring metal detection. Suitable for challenging work environments including high/low temperature, humidity, dry conditions, dust, and dew.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Inspection Window Width | 400mm (400mm customization available) |
| Inspection Height Options | 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm |
| Detection Sensitivity - Fe (Φmm) | ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Alarm System | Audible and visual alarm with automatic stop |
| Construction Material | SUS304 Stainless Steel |
| Machine Dimensions | 160cm (L) × 90cm (W) × 100cm (H) - standard size |
| Net Weight | 330kg (standard size) |
| Power Supply | 110V/220V/380V 50Hz/60Hz, 90W |
| Conveyor Speed | 25-30m/min (customizable to customer requirements) |
| Conveyor Height | 650mm ±50mm (standard), customizable to customer needs |
