| Brand Name: | Juzhuo |
| Model Number: | JZD-366 |
| MOQ: | 1 |

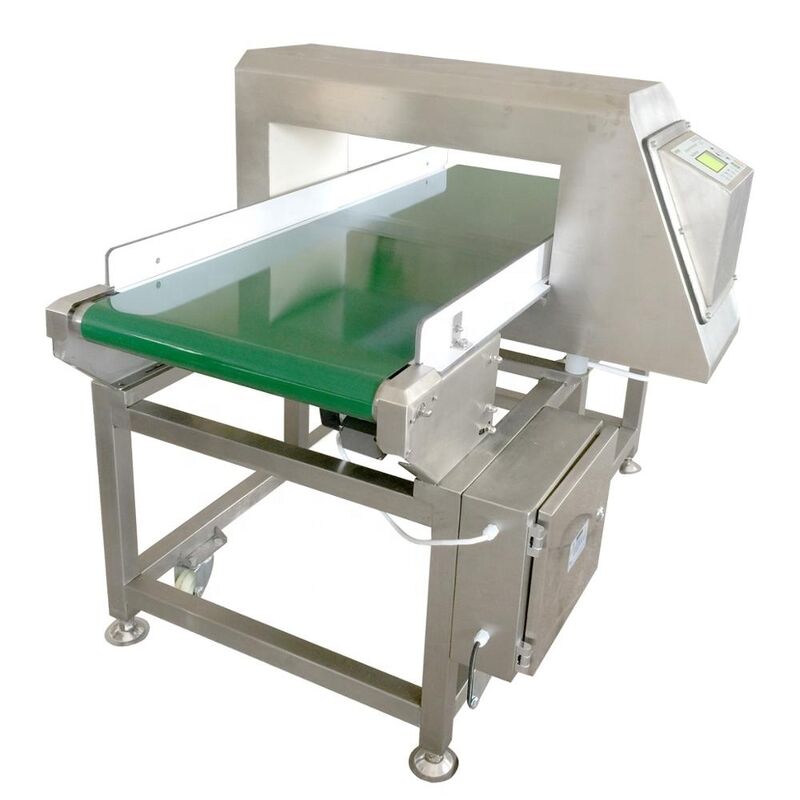

Model JZD-366 is an LCD display intelligent/digital metal detector featuring advanced two-way signal detection circuit technology. It employs cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions to ensure stable and dependable detection capacity with improved detecting effect.
The JZD-366 digital metal detector is primarily used for checking metal impurities in various food products including bakery items, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It is designed to operate effectively in challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Width of Inspection Window (mm) | 400 (customization available) |
| Height of Inspection (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm System | Audible and visual alarm with automatic stop |
| Raw Material | SUS304 |
| Normal Machine Size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size) |
| Net Weight | 330kg (based on normal size) |
| Electrical Source (Power) | 110V/220V/380V 50Hz/60Hz (Power) 90W |
| Conveyor Speed | 25-30m/min (can be designed according to customer requirements) |
| Conveyor Height | 650mm±50mm (normal) can be manufactured according to customer needs |
