| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

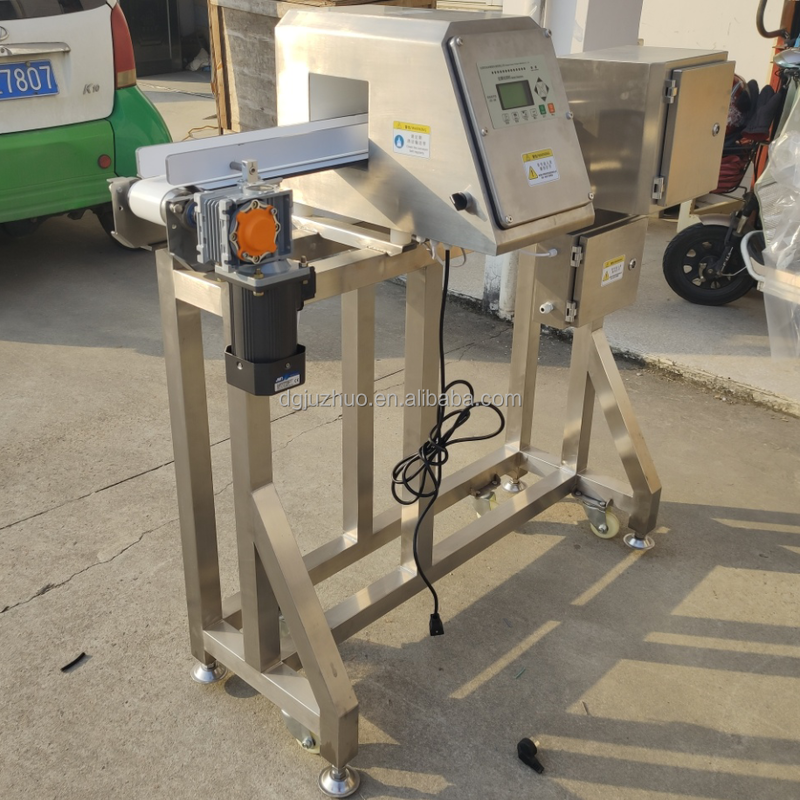

The JZD-366 is an LCD display intelligent/digital metal detector featuring advanced two-way signal detection circuit technology. It incorporates cutting-edge electromagnetic detection and digital signal processing using the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with advanced detecting algorithms, self-study capabilities, and full digital regulating functions for stable and dependable detection performance.
The JZD-366 digital metal detector is designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, purees, sauces, vegetables, and other applications requiring metal detection. It performs reliably in challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Inspection Window Width | 400mm (400mm customization available) |
| Inspection Height Options | 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm |
| Detection Sensitivity - Fe (Φmm) | ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Alarm System | Audible and visual alarm with automatic stop |
| Raw Material | SUS304 |
| Machine Dimensions | 160cm (L) × 90cm (W) × 100cm (H) (standard size) |
| Net Weight | 330kg (standard size) |
| Power Supply | 110V/220V/380V 50Hz/60Hz, 90W |
| Conveyor Speed | 25-30m/min (customizable to customer requirements) |
| Conveyor Height | 650mm±50mm (standard, customizable to customer needs) |
