| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

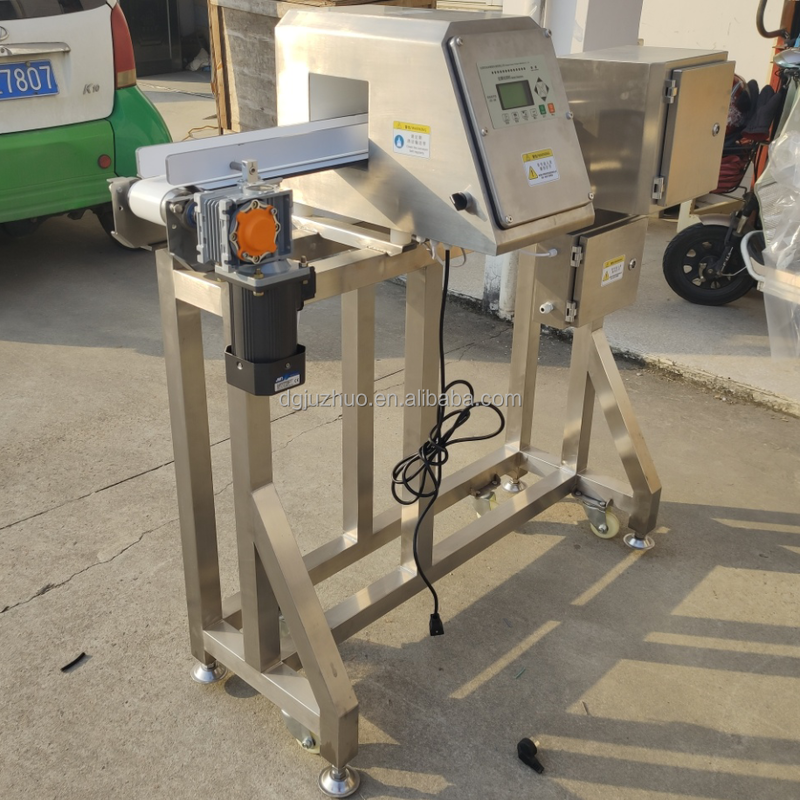

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function to ensure stable and dependable detecting capacity.
Model JZD-366 digital metal detector is primarily used for checking metal impurities in bakery products, pizza, hamburger, puree, sauce, vegetable tobaccos, and other applications requiring metal detection. It can operate in various challenging work environments including high temperature, low temperature, damp, dry, dust, dew, and other poor conditions.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Inspection Window Width (mm) | 400 (customization available) |
| Inspection Height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm System | Audible and visual alarm, automatic stop |
| Raw Material | SUS304 |
| Machine Size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (based on normal size) |
| Net Weight | 330kg (based on normal size) |
| Electrical Source (Power) | 110V/220V/380V 50Hz/60Hz, 90W |
| Conveyor Speed | 25-30m/min (customizable according to customer requirements) |
| Conveyor Height | 650mm±50mm (normal), customizable to customer needs |
