| Brand Name: | JUZHUO |

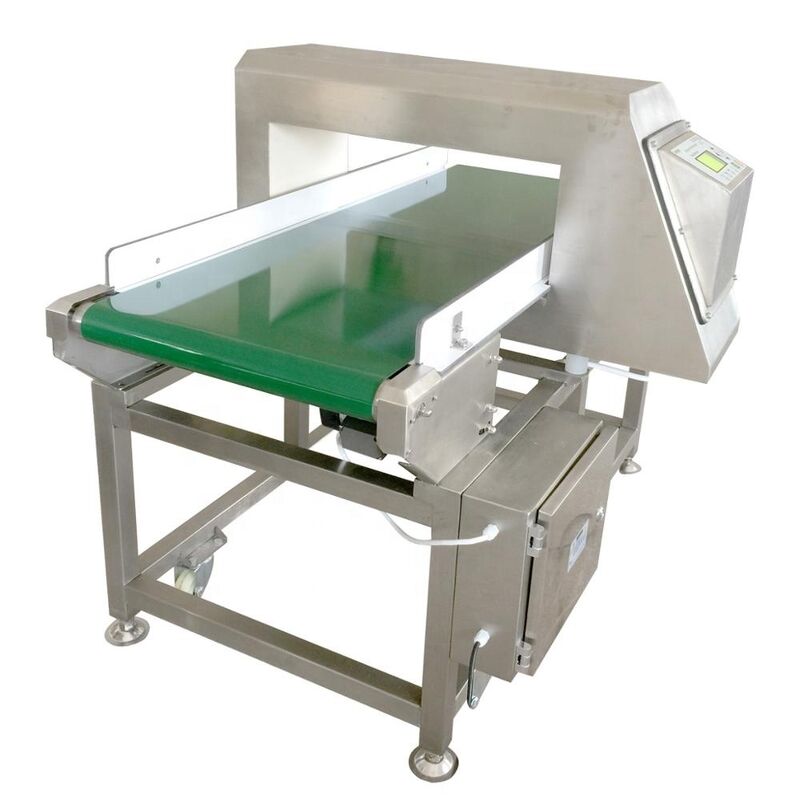

| Model Number: | JZD-366 |
| MOQ: | 5 |
| Price: | $4,680 |
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| The Width of inspection window (mm) | 400 (customization available) |
| The Height of inspection (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 |
| Detection Sensitivity - Fe (Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm | Audible and visual alarm, automatic stop |
| Raw material | SUS304 |
| Normal machine size (mm) | 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size) |
| Net Gross | 330kg (based on normal size) |
| Electrical source (Power) | 110V/220V/380V 50Hz/60Hz (Power) 90W |
| Conveyor speed | 25-30m/min (can be designed according to customer's requirements) |
| Conveyor height | 650mm±50mm (normal) can be manufactured as per customer's needs |
