| Brand Name: | JUZHUO |
| Model Number: | JZD-366 |
| MOQ: | 1 |

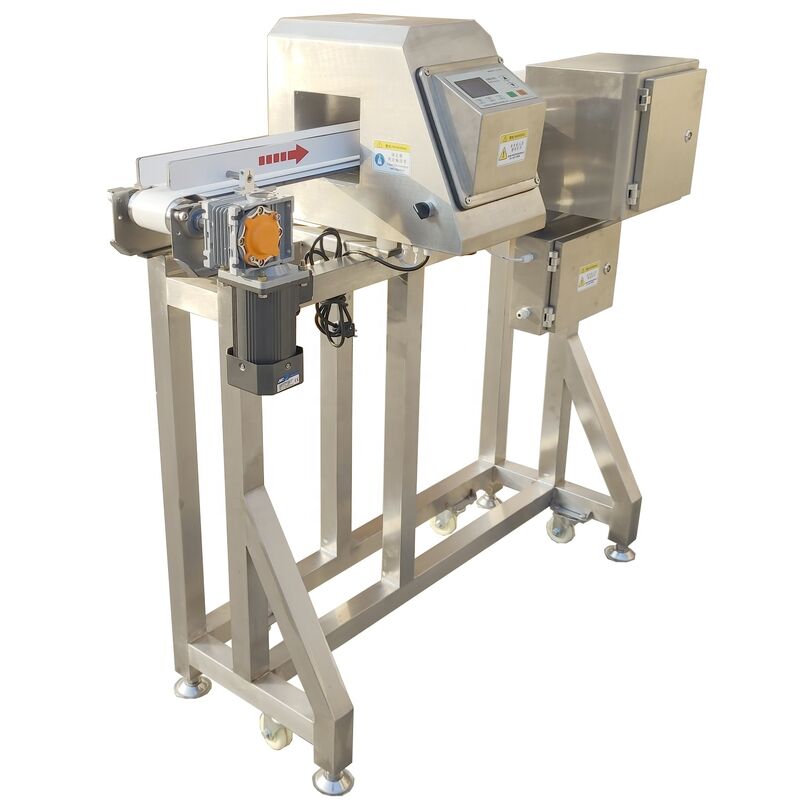

The JZD-366 is an advanced LCD display intelligent digital metal detector featuring two-way signal detection circuit technology. This industrial-grade equipment utilizes cutting-edge electromagnetic detection and digital signal processing technology, incorporating the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms for superior performance.
Designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, purees, sauces, vegetables, and tobacco. Suitable for high-temperature, low-temperature, humid, dry, dusty, and other challenging industrial environments.
| Parameter | Specifications |
|---|---|
| Model | JZD-366 |
| Inspection Window Width | 400mm (400mm customization available) |
| Inspection Height Options | 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm |
| Detection Sensitivity - Fe (Φmm) | ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0 |
| Detection Sensitivity - Non-Fe (Φmm) | ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Detection Sensitivity - 304SUS (Φmm) | ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5 |
| Alarm System | Audible and visual alarm with automatic stop |
| Raw Material | SUS304 stainless steel |
| Machine Dimensions | 160cm (L) × 90cm (W) × 100cm (H) - standard size |
| Net Weight | 330kg (standard size) |
| Power Supply | 110V/220V/380V 50Hz/60Hz, 90W |
| Conveyor Speed | 25-30m/min (customizable to customer requirements) |
| Conveyor Height | 650mm ±50mm (standard), customizable to customer needs |
