| Brand Name: | JuZhuo |
| Model Number: | DDRT-500-700 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | According To Customer Needs |
| Payment Terms: | T/T |

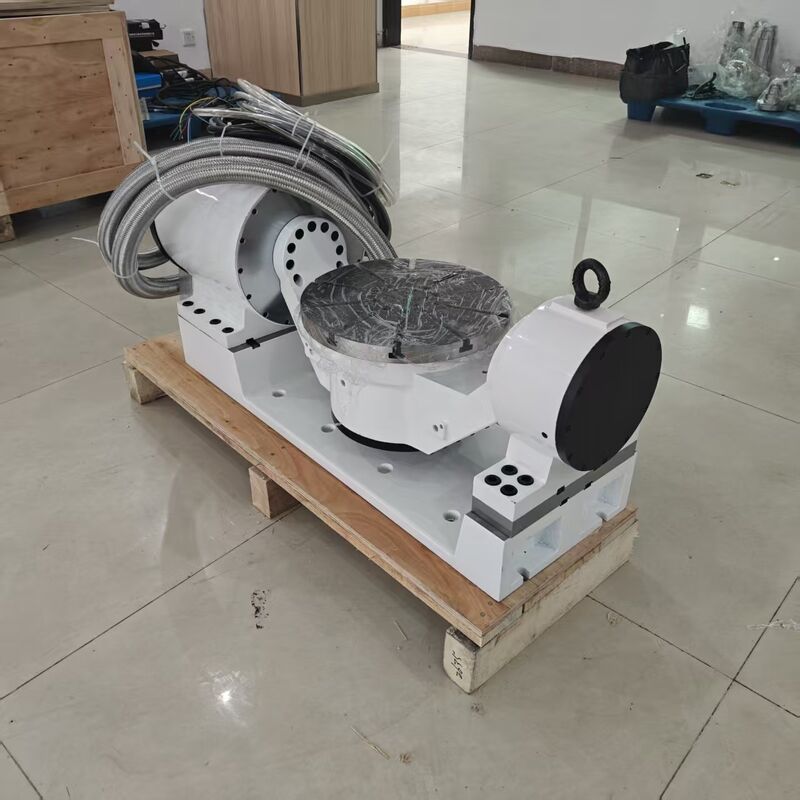

The 5th Axis Direct-Driver Rotary Table is a cutting-edge solution designed for advanced machining applications, offering exceptional precision and reliability. As a vital component in multi-axis machining centers, this 5 Axis CNC Rotary Table delivers superior performance for complex and high-accuracy manufacturing tasks.
The table features robust peak current capabilities with C-axis handling 18 A and Tilt-axis supporting up to 7 A, ensuring smooth and stable operation under demanding workloads. With matched drive supply voltage options of AC220 V and AC380 V, it offers flexibility across different industrial environments.
| Parameter | C-axis | Tilt-axis |
|---|---|---|
| Clamping Holding Torque | 150 N·m | 450 N·m |
| Continuous Rated Current (In) | 4 A | 3.5 A |
| Continuous Rated Torque (Tn) | 27 N·m | 65 N·m |
| Maximum Operating Speed (np) | 300 R/min | 100(300) R/min |
| Repeatability of Positioning | 4 Arcsec | 4 Arcsec |
| Central Hollow Bore | 40 mm | |
| Enclosure Protection Class | IP67 | |
| Allowable Radial Working Load (Fr) | 1500 N | |
| Allowable Overturning Moment (Tm) | 217 N·m | |
| Table End-face Runout | 8 μm | |
The JuZhuo DDRT-200-300 5 Axis Direct-Driver Rotary Table is engineered for demanding manufacturing environments, providing exceptional accuracy and durability. Ideal for aerospace component manufacturing, automotive parts machining, mold making, and precision engineering applications.
With a center height of 200 mm and table end-face runout of just 8 μm, it guarantees precise positioning and smooth operation essential for complex multi-axis machining tasks.
Manufactured in Dongguan, China with ISO9001 and CE certifications. Minimum order quantity is 1 set with flexible pricing. Supply ability of 1000 sets per month ensures timely availability for production demands.
Product is securely packaged in wooden boxes with customized delivery times according to customer needs. Payment terms available via T/T.
Comprehensive technical support including setup assistance, calibration guidance, and software integration help. Maintenance services include routine inspection, lubrication, and part replacement to maintain accuracy and longevity.
Software and firmware updates available through support portal. Training sessions and workshops offered to maximize operational capabilities.
Each unit is securely cushioned with high-density foam and enclosed in sturdy, custom-fitted wooden crates. Multiple shipping options including air freight, sea freight, and express courier services available.
All shipments are fully insured and tracked, ensuring safe delivery worldwide.
