Direct Drive Rotary Platform 5th Axis Rotary Table High Precision

Brand Name:	JuZhuo
Model Number:	DDRT-260-400
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Bottom Keyway Width:

14H7 Mm

Rated Load Capacity:

Horizontal Setup: 40 Kg; Inclined Setup: 20 Kg

Central Hollow Bore:

40 Mm

Table Working Diameter:

200 Mm

Cable Outlet Arrangement:

Corrugated Conduit Outlet

Peak Dynamic Torque (Tp):

C-axis: 250 N·m; Tilt-axis: 130 N·m

Oscillation Rotation Range:

C-axis: Continuous 360°; Tilt-axis: ±110°

Allowable Axial Working Load (Fa):

4000 N

Name:

Rotary Platform

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

Direct Drive Rotary Platform

Rotary Platform 5th Axis

5th Axis Rotary Table High Precision

Product Description

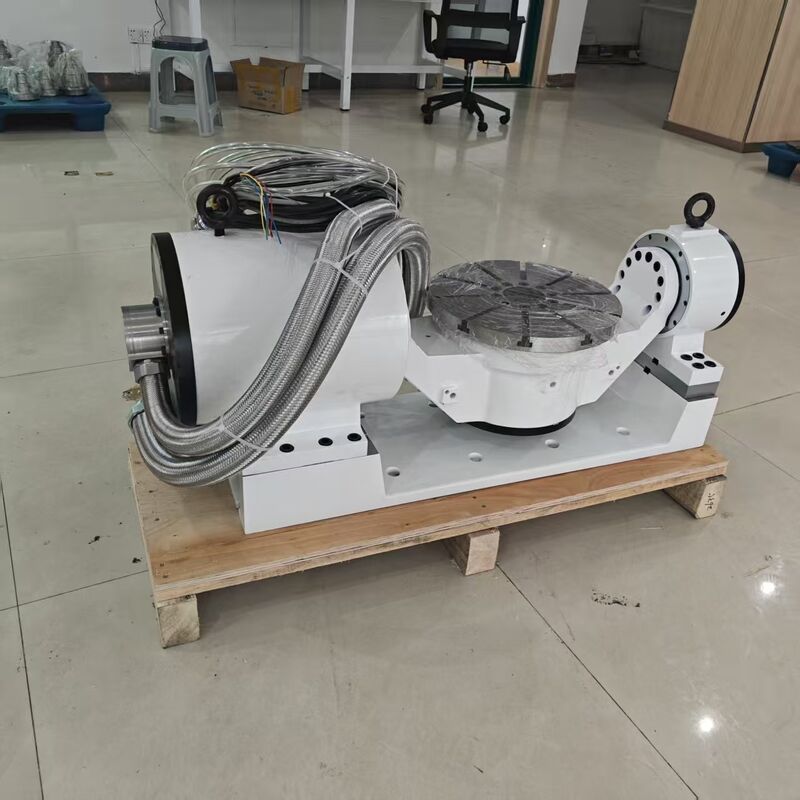

JuZhuo DDRT-200-300 5th Axis Direct-Driver Rotary Table

Product Overview

The 5 Axis Direct Drive Table represents a pinnacle of precision engineering, designed specifically to meet the demanding requirements of modern manufacturing and machining applications. This advanced rotary table combines exceptional performance with robust construction, offering unparalleled accuracy and reliability for complex multi-axis machining tasks.

Key Features

Product Name: 5th Axis Direct-Driver Rotary Table
Cable Outlet Arrangement: Corrugated Conduit Outlet for secure cable management
Rated Load Capacity: Horizontal Setup: 40 Kg, Inclined Setup: 20 Kg
Peak Current (Ip): C-axis: 18 A, Tilt-axis: 7 A
Bottom Keyway Width: 14H7 Mm for precise mounting
Oscillation Rotation Range: C-axis: Continuous 360° rotation, Tilt-axis: ±110° tilt range
Advanced 5th Axis Direct Drive Rotary technology
High-precision Five Axis Rotary Stage design
Direct Drive 5 Axis Stage mechanism for enhanced accuracy and reliability

Technical Specifications

Parameter	Specification
Peak Dynamic Torque (Tp)	C-axis: 250 N·m; Tilt-axis: 130 N·m
Motor Cooling Method	Self-cooled Construction (Both Axes)
Rotor Mass Moment of Inertia (Jr)	C-axis: 0.015 Kg·cm²; Tilt-axis: 0.016 Kg·cm²
Positioning Accuracy	C-axis: 8 Arcsec; Tilt-axis: 8 Arcsec
Maximum Operating Speed (np)	C-axis: 300 R/min; Tilt-axis: 100(300) R/min
Rated Load Capacity	Horizontal Setup: 40 Kg; Inclined Setup: 20 Kg
Continuous Rated Torque (Tn)	C-axis: 27 N·m; Tilt-axis: 65 N·m
Table Working Diameter	200 Mm
T-slot Size	12H8 Mm
Cable Outlet Arrangement	Corrugated Conduit Outlet

Applications

This high-performance Direct Drive Rotary Platform is ideal for aerospace, automotive, mold manufacturing, and medical device industries. With exceptional machining accuracy and minimal table end-face runout of just 8 μm, it ensures precise component manufacturing in CNC machining centers requiring five-axis simultaneous machining.

Customization & Ordering

Manufactured in Dongguan, China with ISO9001 and CE certifications. Features pneumatic clamping at 6 Bar for both axes with clamping holding torque of 150 N·m (C-axis) and 450 N·m (tilt-axis). Minimum order quantity: 1 set. Supply ability: 1000 sets per month. Delivery time arranged according to customer requirements. Payment via T/T with negotiable pricing.

Support & Services

Comprehensive technical support including installation guidance, calibration assistance, firmware updates, troubleshooting, and staff training to ensure optimal performance and longevity of your rotary table.

Frequently Asked Questions

What is the brand and model number of this 5th Axis Direct-Driver Rotary Table?

The brand is JuZhuo and the model number is DDRT-200-300.

Where is the JuZhuo DDRT-200-300 rotary table manufactured?

It is manufactured in Dongguan, China.

What certifications does the JuZhuo DDRT-200-300 hold?

This product is certified with ISO9001 and CE.

What is the minimum order quantity and pricing?

The minimum order quantity is 1 set and the price is negotiable.
