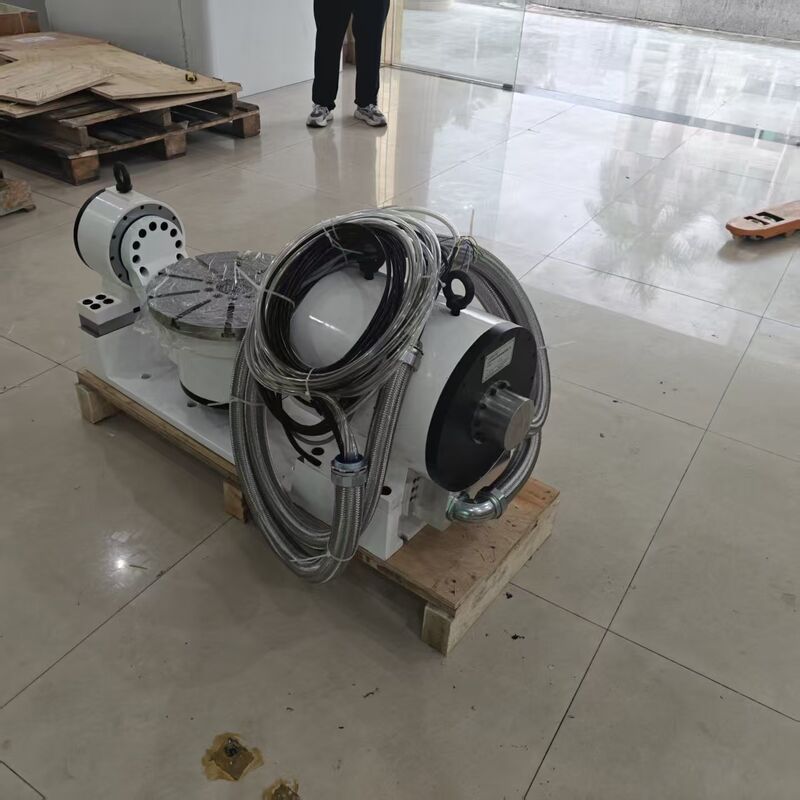

Multi Axis Direct Drive Rotary Table AC220V AC380V Precision Rotary Table

Brand Name:	JuZhuo
Model Number:	DDRT-360-520
MOQ:	1set
Price:	Negotiable
Delivery Time:	According To Customer Needs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001,CE

Name:

Direct Drive Rotary Table

Positioning Accuracy:

C-axis: 8 Arcsec; Tilt-axis: 8 Arcsec

Peak Current (Ip):

C-axis: 18 A; Tilt-axis: 7 A

Cable Outlet Arrangement:

Corrugated Conduit Outlet

Allowable Axial Working Load (Fa):

4000 N

Matched Drive Supply Voltage:

AC220V/AC380V

Table Radial Runout:

8 μm

Clamping Configuration:

Pneumatic Clamping @ 6 Bar (Both Axes)

Oscillation Rotation Range:

C-axis: Continuous 360°; Tilt-axis: ±110°

Packaging Details:

Wooden Box

Supply Ability:

1000set/month

Highlight:

Multi Axis Direct Drive Rotary Table

Direct Drive Rotary Table AC220V

AC380V Precision Rotary Table

Product Description

Allowable Overturning Moment 217 Nm 5th Axis Direct-Driver Rotary Table

Product Overview

The 5th Axis Direct-Driver Rotary Table is a cutting-edge solution designed for modern machining and manufacturing processes. This High Precision Five Axis Table offers exceptional accuracy, reliability, and efficiency, making it indispensable for advanced CNC machining centers and multi-axis milling machines.

Key Features

Product Name: 5th Axis Direct-Driver Rotary Table
T-slot Size: 12H8 mm
Peak Current (Ip): C-axis: 18 A; Tilt-axis: 7 A
Central Hollow Bore: 40 mm
Rotor Mass Moment of Inertia (Jr): C-axis: 0.015 Kg·cm²; Tilt-axis: 0.016 Kg·cm²
Cable Outlet Arrangement: Corrugated Conduit Outlet
5 Axis Direct Drive Table design for enhanced precision
Multi Axis Direct Drive Table capability for versatile operation
High Precision Five Axis Table for complex machining tasks

Technical Specifications

Peak Dynamic Torque (Tp)	C-axis: 250 N·m; Tilt-axis: 130 N·m
Enclosure Protection Class	IP67
Continuous Rated Current (In)	C-axis: 4 A; Tilt-axis: 3.5 A
Allowable Radial Working Load (Fr)	1500 N
Repeatability of Positioning	C-axis: 4 Arcsec; Tilt-axis: 4 Arcsec
Matched Drive Supply Voltage	AC220/AC380 V
Table Working Diameter	200 mm
Motor Cooling Method	Self-cooled Construction (Both Axes)
Clamping Holding Torque	C-axis: 150 N·m; Tilt-axis: 450 N·m

Performance Details

The C-axis achieves speeds up to 300 R/min, while the tilt-axis operates at 100 R/min (optionally up to 300 R/min). Both axes utilize pneumatic clamping at 6 bar pressure for secure workpiece holding. The self-cooled motor construction maintains optimal temperatures during prolonged operation.

Applications

Ideal for high-precision industrial applications requiring multi-axis rotation and positioning, including advanced machining, aerospace component manufacturing, precision optics, automotive part fabrication, robotics, automated inspection systems, and custom automation solutions.

Product Information

Frequently Asked Questions

Q: What is the brand and model number?

A: JuZhuo DDRT-200-300

Q: Where is it manufactured?

A: Dongguan, China

Q: What certifications does it have?

A: ISO9001 and CE certified

Q: What is the minimum order quantity and price?

A: Minimum order is 1 set, price is negotiable

Q: How is it packaged and what is delivery time?

A: Packaged in wooden box, delivery time according to customer needs

Q: What are payment terms and supply capacity?

A: Payment via T/T, supply capacity of 1000 sets per month
